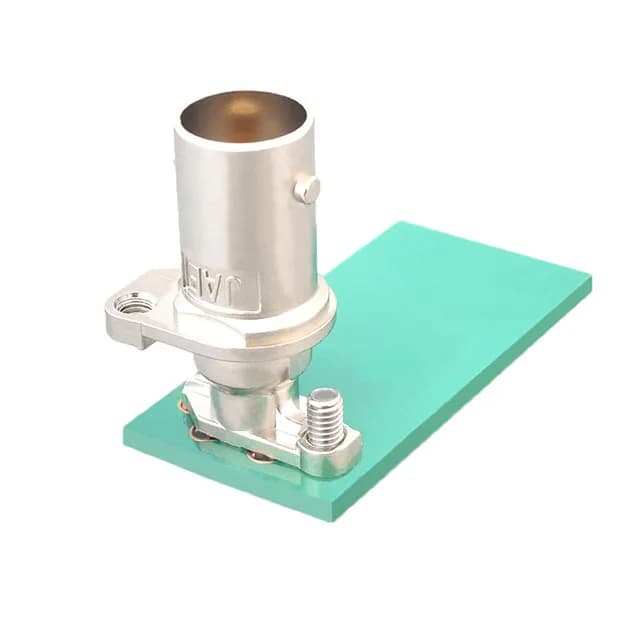

JAE BNC0 series, BNC0T101C00, 75 Ohm BNC receptacle, female socket, 1 port, panel mount through-hole right-angle, bayonet lock, gold-plated center contact, 5000 mating cycles, 12G-SDI rated.
| Parameter | Value |
|---|---|
| Series | BNC0 |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Receptacle, Female Socket |
| Fastening type | Bayonet Lock |
| Voltage rating | 250 V |
| Mounting feature | Flange |
| Operating temperature | -40°C~85°C |
| Body material | Zinc Alloy |
| Housing color | Silver |
| Dielectric material | Syndiotactic Polystyrene (SPS) |
| Center contact material | Phosphor Bronze |
| Package | Tray |
| Parameter | Value |
|---|---|
| Features | Board Guide, 12G-SDI |
| Impedance | 75Ohm |
| Body finish | Nickel |
| Mating cycles | 5000 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
The BNC0T101C00 carries a 12G-SDI rating for 12 Gbps serial digital video signals. The right-angle through-hole termination and panel-mount flange let it sit flush against a panel while the solder tails route to the PCB.
The bayonet lock gives a positive twist-and-lock mate that holds under cable strain in mobile broadcast racks.
Yes, the BNC0T101C00 is explicitly rated for 12G-SDI, supporting 12 Gbps serial digital video signals used in UHD/4K broadcast and production environments.
The BNC0T101C00 is a 75 Ohm BNC receptacle, designed for video and broadcast applications where 75 Ohm characteristic impedance is required.
It is rated for 5000 mating cycles, well above the typical BNC standard, making it suitable for high-use patch bays and test equipment.
