The BNCS007C00: It is the female socket half of a bayonet-lock coaxial interconnect, specified where the 75 Ohm characteristic impedance must be maintained through the board launch. The body is zinc alloy with a nickel finish, giving a corrosion-resistant shell that grounds through the bayonet interface.

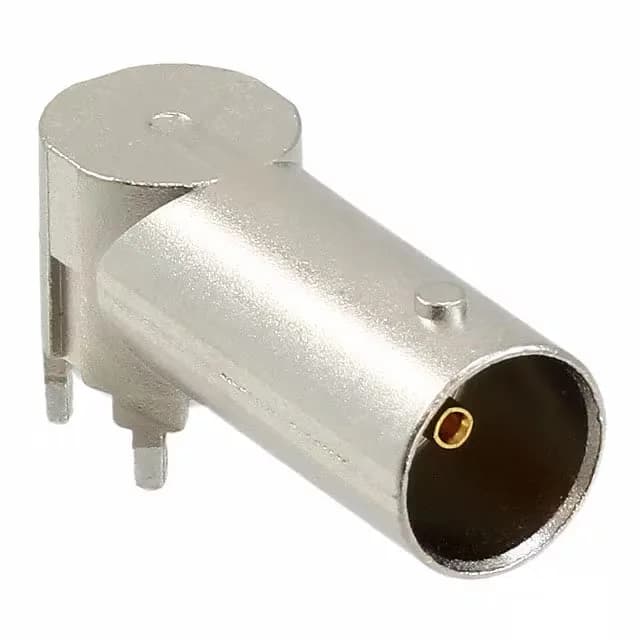

BNCS007C00 BNC Jack, 75 Ohm, Right Angle, Through Hole
MPNBNCS007C00
Active
BNC jack, 75 Ohm, right-angle through-hole, bayonet lock, 1 port, gold center contact, 2.4 GHz max, -40°C~85°C, tray.
$16.6196Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | Jack, Female Socket |
| Fastening type | Bayonet Lock |
| Frequency - max | 2.4 GHz |
| Operating temperature | -40°C~85°C |
| Body material | Zinc Alloy |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Phosphor Bronze |
| Package | Tray |
| Impedance | 75Ohm |
| Body finish | Nickel |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
Product details
Frequently asked questions
Is BNCS007C00 right angle or straight?
Right angle.
