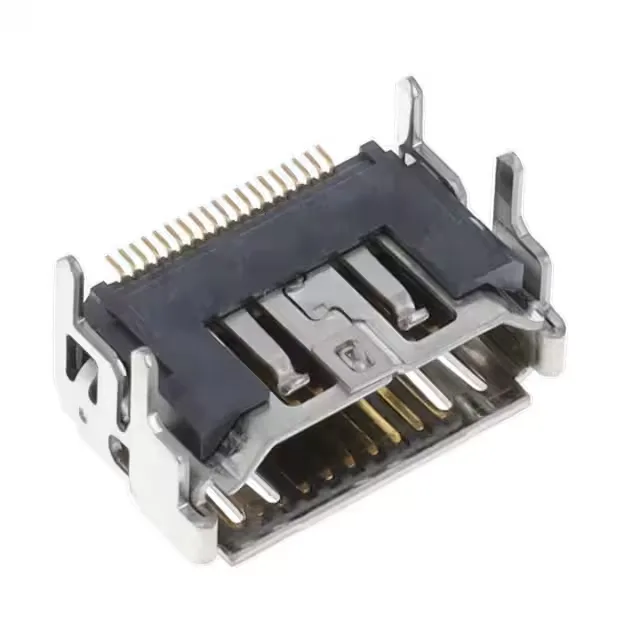

JAE DC1RS19JA7R550 HDMI Receptacle, 19 Contacts, Shielded

MPNDC1RS19JA7R550
Active

JAE Electronics DC1 series HDMI receptacle, order code DC1RS19JA7R550, 19 contacts, single port, Type A, gold-plated contacts, shielded, surface-mount right-angle, solder termination.

$2.4Ref. price · indicative, final on quote
DC1RS19JA7R550 datasheet
StockIn Stock (26)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

DC1RS19JA7R550 Technical Specifications
ParameterValue
SeriesDC1
Mounting typeSurface Mount, Right Angle; Through Hole
Connector typeHDMI
Positions19
Mounting featureHorizontal
Operating temperature-20°C ~ 85°C
Insulation colorBlack
Shell (Shielding material)Steel, Stainless
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesBoard Guide
ShieldingShielded
TerminationSolder
Contact finishGold
Number of ports1

Product details

19-contact shielded HDMI receptacle

The DC1RS19JA7R550 is a 19-contact HDMI Type A receptacle from JAE Electronics' DC1 series, shielded for EMI containment and terminated via surface-mount right-angle solder tails. Gold-plated contacts and a steel/stainless shell support the -20°C to 85°C operating range. The board guide aids alignment during automated assembly.

Tray-pack sibling at the same position count

The DC1RS19JA7R550 shares the 19-contact HDMI Type A layout with the DC1RS19JAX, which ships in tray packaging rather than tape and reel. Both use the same gold-plated contacts, shielded shell, and board guide — the packaging difference suits low-volume vs reel-fed assembly lines.
