HDMI Micro Type-D receptacle with 5000-cycle durability
The DC3RX19JA3R1700 is the 19-contact HDMI Micro Type-D receptacle in JAE's DC3 series, designed for compact portable equipment requiring a shielded HDMI interface.

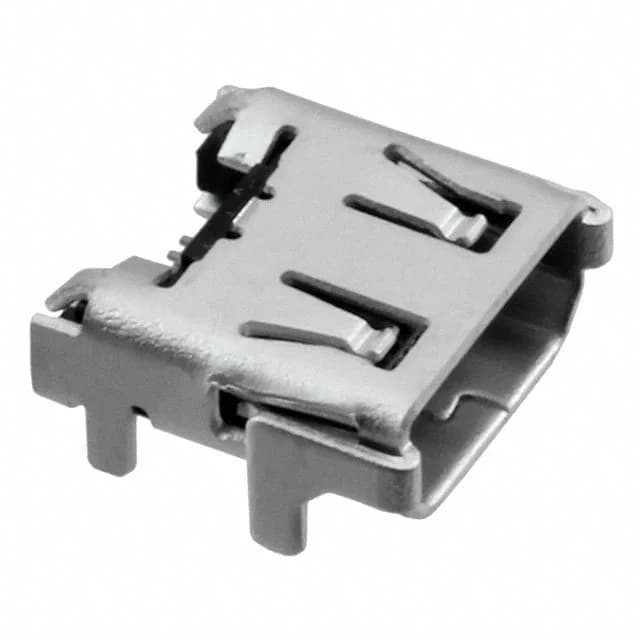

JAE DC3RX19JA3R1700 HDMI Micro Receptacle, 19 Contacts
MPNDC3RX19JA3R1700
Active
JAE Electronics DC3 series HDMI - Micro receptacle, order code DC3RX19JA3R1700, 19 contacts, 0.3 A per contact, gold contact finish, shielded, surface-mount right-angle with through-hole solder termination, tape and reel packaging.
$1.4500Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DC3 |
| Mounting | Surface Mount, Right Angle; Through Hole |
| Connector type | HDMI - Micro |
| Current rating | 0.3A per Contact |
| Positions | 19 |
| Mounting feature | Horizontal |
| Operating temperature | -20°C ~ 85°C |
| Insulation color | Black |
| Shell (Shielding material) | Steel, Stainless |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 5000 |
| Contact finish | Gold |
| Number of ports | 1 |
Product details
Frequently asked questions
What is the mating cycle rating for this HDMI Micro receptacle?
Rated for 5000 mating cycles.
