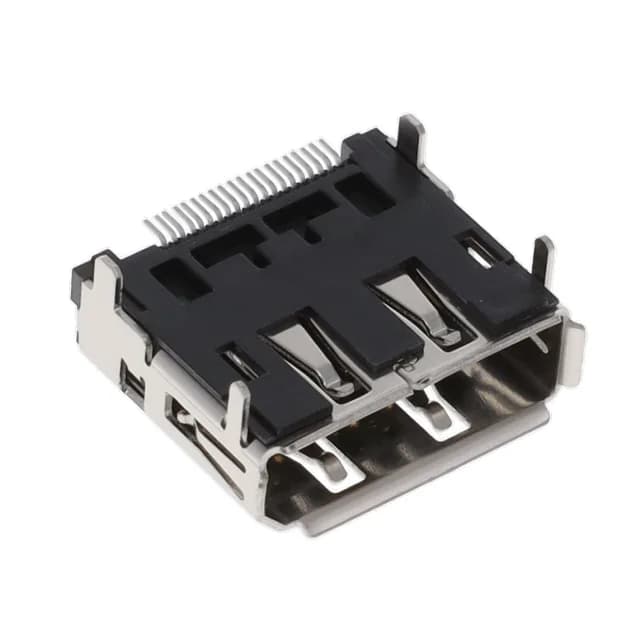

JAE Electronics DP1 series DisplayPort receptacle, order code DP1RD20JQ2R400, 20 contacts, 0.5 A per contact, gold-plated contacts, surface-mount right-angle, reverse mount, solder termination.
| Parameter | Value |
|---|---|
| Series | DP1 |
| Mounting | Surface Mount, Right Angle |
| Connector type | DisplayPort |
| Current rating | 0.5A per Contact |
| Positions | 20 |
| Mounting feature | Horizontal, Reverse Mount |
| Operating temperature | -20°C ~ 85°C |
| Insulation color | Black |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Parameter | Value |
|---|---|
| Features | Solder Retention |
| Shielding | Unshielded |
| Termination | Solder |
| Mating cycles | 10000 |
| Contact finish | Gold |
| Specifications | Display Port 1.1a |
| Number of ports | 1 |
The DP1RD20JQ2R400 is a 20-contact DisplayPort receptacle from JAE Electronics' DP1 series, specified to DisplayPort 1.1a.
JAE lists the DP1RD20JQ2R400 as NRND (Not Recommended for New Designs).
The DP1RD20JQ2R400 is a receptacle (female) connector.
It is part of JAE Electronics' DP1 series.
