USB-C receptacle with 24 contacts and USB 3.2 Gen 2 signal support

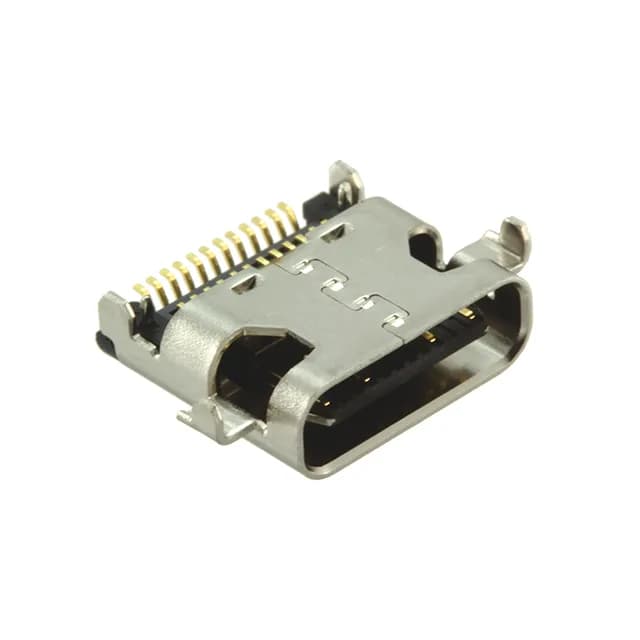

The DX07B024JJ2R1500 is a 24-contact USB-C receptacle from JAE Electronics' DX07 series, supporting USB 3.2 Gen 2 (10 Gbps) data rates. Gold-plated contacts and a shielded steel/stainless shell provide corrosion resistance and EMI containment for high-speed differential pairs. Rated 20 V, 0.25 A and 1.25 A per contact, with 10000 mating cycles and an operating range of -30°C to 80°C.
All DX07B024 variants share the same 24-contact count, USB 3.2 Gen 2 rating, gold plating, and shielded construction — the order-code suffix (JJ2, JJ1, JJ3, XJ1) reflects packaging and pick-and-place feature differences rather than functional specs.
Mating cycles and temperature range for field service
Rated for 10000 mating cycles, the gold-plated contacts support repeated insertion and extraction in field-service or test applications without significant wear. The -30°C to 80°C operating range covers indoor and outdoor equipment enclosures where the connector is not directly exposed to weather.
