Termination and board fit

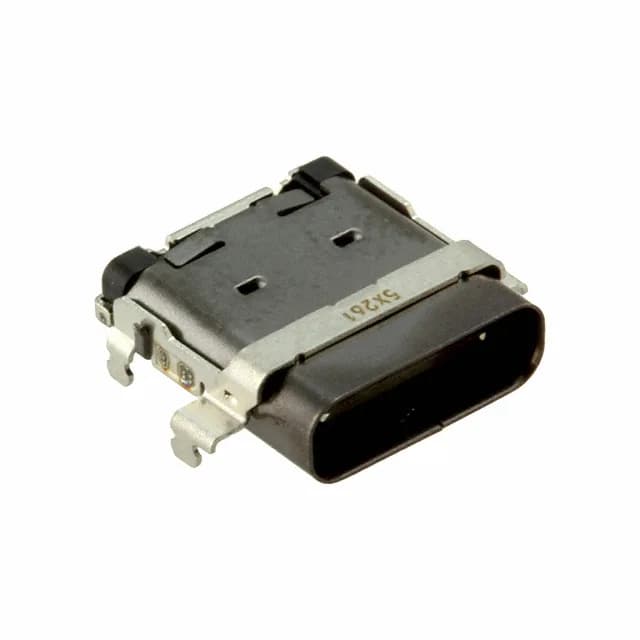

The DX07B024XJ1R1300 is the 24-contact USB-C receptacle in JAE's DX07 series, specified for USB 3.2 Gen 2 signaling at 20 V. Termination is solder with a horizontal mid-mount orientation — the board edge cutout accepts the shielded steel/stainless shell for mechanical retention.
Mating cycles and contact plating
Rated for 10000 mating cycles with gold-plated contacts — the 0.25 A / 1.25 A current rating splits between the signal and power contacts per the USB-C specification.
Position count across the DX07 series
All DX07B024 variants share the same 24-contact count, USB 3.2 Gen 2 rating, and horizontal mid-mount footprint — the difference between the DX07B024XJ1R1300 and the DX07B024JJ2R1500 or DX07B024JJ1R1500 is packaging and reel format, not functional fit.
