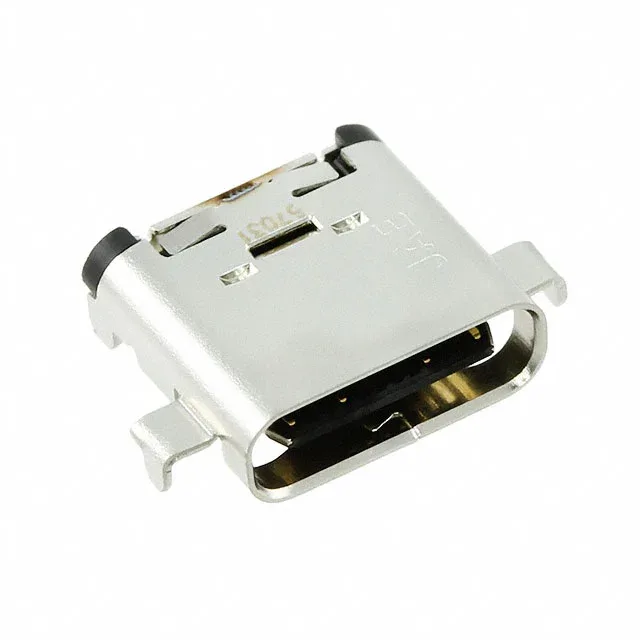

JAE Electronics DX07 series USB-C receptacle, order code DX07BD24JJ4R1100, 24 contacts, single port, USB 4.0 Gen 3, 5 A, 20 V, gold-plated contacts, surface-mount right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | DX07 |
| Mounting | Surface Mount, Right Angle |
| Connector type | USB-C (USB TYPE-C) |
| Voltage - rated | 20V |
| Current rating | 5A |
| Positions | 24 |
| Mounting feature | Horizontal |
| Operating temperature | -40°C ~ 85°C |
| Insulation color | Black |
| Gender | Receptacle |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Unshielded |
| Termination | Solder |
| Mating cycles | 10000 |
| Contact finish | Gold |
| Specifications | USB 4.0 Gen 3 |
| Number of ports | 1 |
The DX07BD24JJ4R1100 is the 24-contact USB-C receptacle in JAE Electronics' DX07 series, rated for USB 4.0 Gen 3 data rates. Gold-plated contacts rated 5 A at 20 V and 10000 mating cycles support repeated field connection in high-cycle-count equipment.
