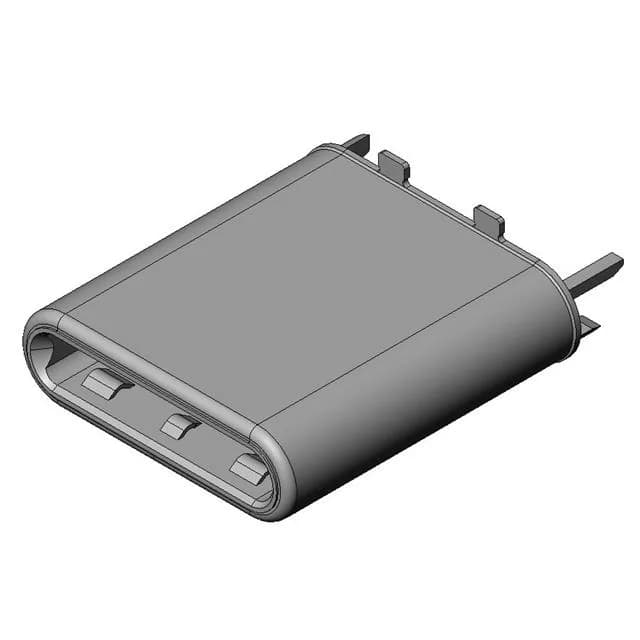

JAE Electronics DX07 USB-C (USB TYPE-C) plug, order code DX07P022FA1R1800, 22 contacts, 5 A, 48 V, gold-plated contacts, shielded, board edge straddle mount, solder termination.
| Parameter | Value |
|---|---|
| Series | DX07 |
| Mounting | Board Edge, Straddle Mount |
| Connector type | USB-C (USB TYPE-C) |
| Voltage - rated | 48V |
| Current rating | 5A |
| Positions | 22 |
| Mounting feature | Reversible |
| Operating temperature | -40°C ~ 85°C |
| Insulation color | Black |
| Shell (Shielding material) | Steel, Stainless |
| Gender | Plug |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 10000 |
| Contact finish | Gold |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Number of ports | 1 |
The DX07P022FA1R1800 is the 22-contact member of JAE Electronics' DX07 USB-C plug line, rated for USB 3.2 Gen 2 signaling. Gold-plated contacts carry 5 A at 48 V, and the shielded steel/stainless shell supports 10000 mating cycles.
The DX07P022FA1R1800 is listed as ROHS3 Compliant.
The DX07P022FA1R1800 is a Plug (male) USB-C connector.
