JAE Electronics DX07P024AJ5R1500 — USB / HDMI Cable Assemblies

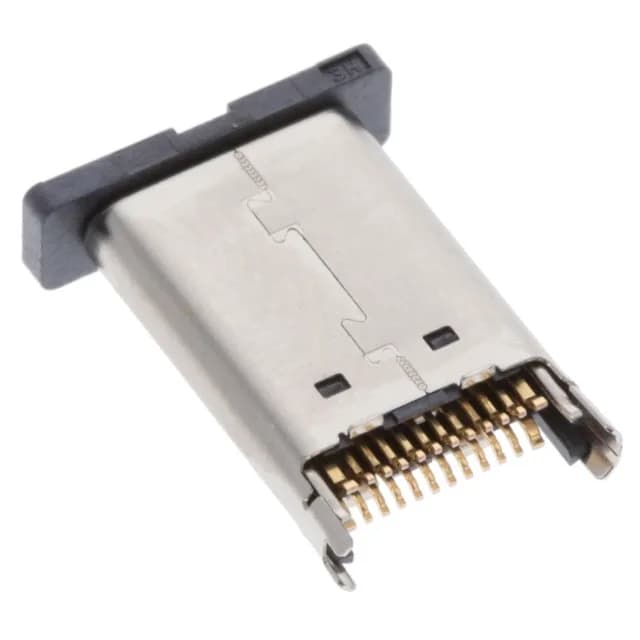

JAE DX07P024AJ5R1500 USB-C Plug, 24 Contacts, USB 3.2 Gen 2

MPNDX07P024AJ5R1500
Active

JAE Electronics DX07 series USB-C plug, order code DX07P024AJ5R1500, 24 contacts, USB 3.2 Gen 2, 20 VAC, 0.25 A / 1.25 A, gold contact finish, shielded, board edge straddle mount, solder termination.

$1.9600Ref. price · indicative, final on quote
JAE Electronics DX07P024AJ5R1500 datasheet (PDF)
SeriesDX07
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

DX07P024AJ5R1500 key specifications
ParameterValue
SeriesDX07
MountingBoard Edge, Straddle Mount
Connector typeUSB-C (USB TYPE-C)
Voltage - rated20VAC
Current rating0.25A, 1.25A
Positions24
Mounting featureReversible
Operating temperature-30°C ~ 80°C
Insulation colorBlack
Shell (Shielding material)Steel, Stainless
GenderPlug
PackageTape & Reel (TR) Cut Tape (CT)

All specifications

DX07P024AJ5R1500 additional specifications
ParameterValue
FeaturesCover
ShieldingShielded
TerminationSolder
Mating cycles10000
Contact finishGold
SpecificationsUSB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Number of ports1

Product details

USB 3.2 Gen 2 plug for board-edge mounting

The DX07P024AJ5R1500 is a 24-contact USB-C plug in JAE's DX07 series, rated for USB 3.2 Gen 2 (10 Gbps) signalling.

Position count across the DX07 series

Within the DX07 series the 24-contact DX07P024AJ5R1500 sits alongside the DX07P024AJ1R1500 and DX07P024MJ1R1500 — all share 24 contacts, the same USB 3.2 Gen 2 spec, and identical gold plating and shielding. The DX07P022AA6R2000 offers 24 contacts configured as 22 + 2 dummy, matching the same pitch and footprint for designs that can omit the SBU sideband contacts.

Frequently asked questions

What is the closest functional second-source to the DX07P024AJ5R1500?

The DX07P024AJ1R1500 is a parametric peer with the same 24-contact count, USB 3.2 Gen 2 rating, gold plating, and straddle-mount termination — the primary difference is the packaging option (Digi-Reel vs Cut Tape).
