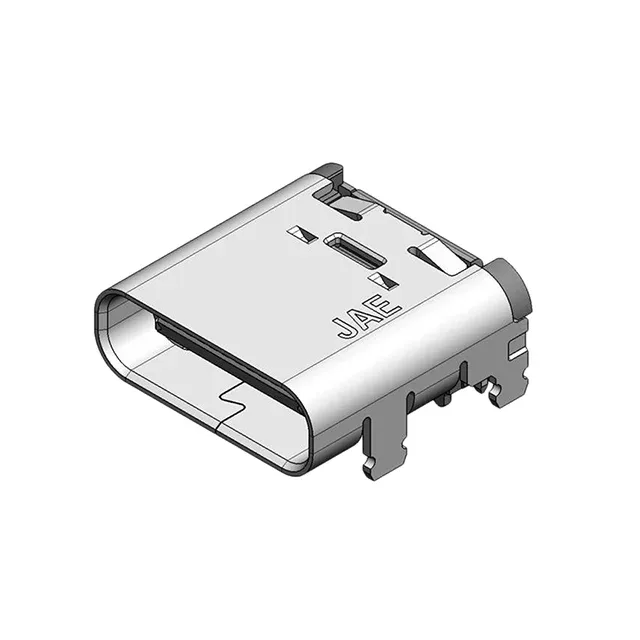

JAE DX07S024JJ4R1300 USB-C Receptacle, 24P SMD RA

MPNDX07S024JJ4R1300
Active

JAE Electronics DX07 USB-C receptacle, order code DX07S024JJ4R1300, 24 contacts, USB 3.2 Gen 2, shielded, gold contact finish, surface-mount right-angle, solder termination.

$2.7Ref. price · indicative, final on quote
DX07S024JJ4R1300 datasheet
StockIn Stock (17)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

DX07S024JJ4R1300 Technical Specifications
ParameterValue
SeriesDX07
Mounting typeSurface Mount, Right Angle; Through Hole
Connector typeUSB-C (USB TYPE-C)
Voltage - rated20V
Current rating0.25A, 1.25A
Positions24
Mounting featureHorizontal
Operating temperature-30°C ~ 80°C
Insulation colorBlack
Shell (Shielding material)Steel, Stainless
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Mating cycles10000
Contact finishGold
SpecificationsUSB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Number of ports1

Product details

USB 3.2 Gen 2 receptacle with board lock

The DX07S024JJ4R1300 is the 24-contact USB-C receptacle in JAE's DX07 series, rated for USB 3.2 Gen 2 (10 Gbps) data throughput. Shielded shell with board lock, gold-plated contacts, and a 10000-cycle mating life. Current rating splits between the signal contacts (0.25 A) and the power contacts (1.25 A).

Sibling variants in the DX07 line

The DX07 series offers three other 24-contact USB-C receptacles that differ only in added features: the DX07S024JJ7R1200 adds a different packaging option, the DX07S024JJ1R1300 adds a board guide, and the DX07S024JJ3R1300 adds a pick-and-place pad. All share the same 24 contacts, USB 3.2 Gen 2 rating, gold plating, and 10000-cycle durability.

Frequently asked questions

What compliance documentation is available for DX07S024JJ4R1300?

The part is RoHS Compliant per JAE's declaration.
