USB-C receptacle with vertical SMT mount

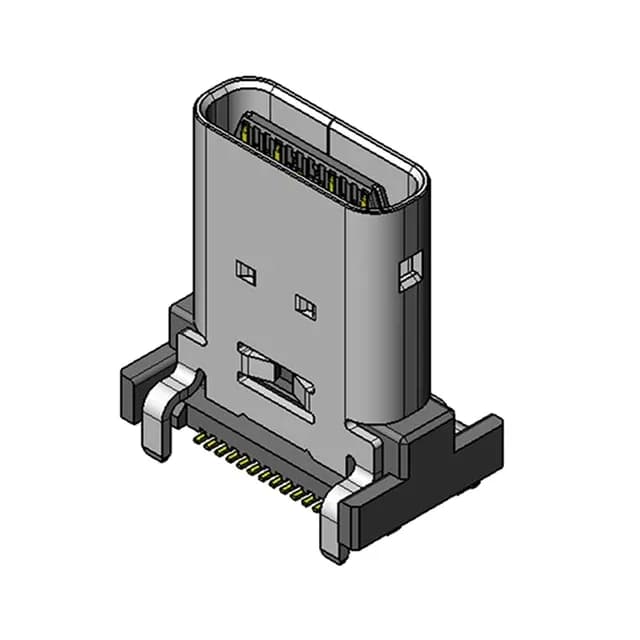

The DX07S024WJ1R350 is the 24-contact vertical-mount member of JAE's DX07 USB-C receptacle family, supporting USB 3.2 Gen 2 data rates. Gold-plated contacts rated 5 A at 20 V, with 10000 mating cycles specified for repeated field use.
Position count and orientation across the DX07 series
Within the DX07 series the DX07S024WJ1R350's 24 contacts and vertical mounting differ from the horizontal-mount DX07S024JA1R1300 and DX07S024XA8R700, which also carry 24 contacts but with a right-angle board orientation — the contact count and USB 3.2 Gen 2 specification are shared across the three.
