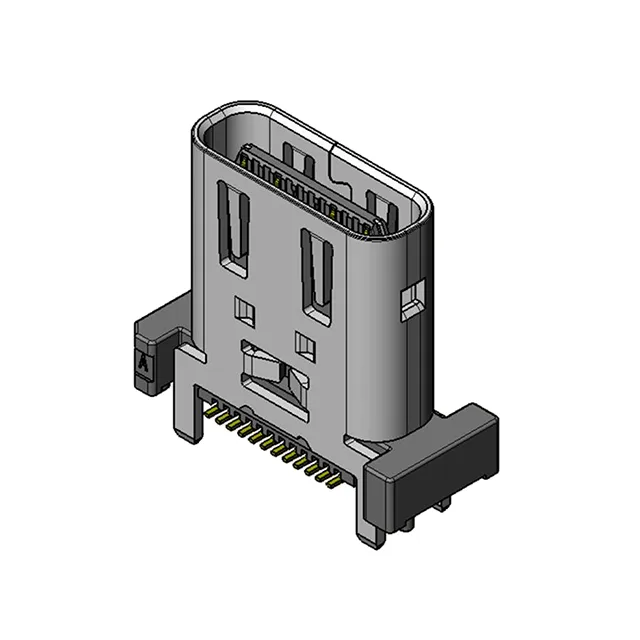

JAE Electronics DX07 USB-C receptacle, order code DX07S024WJ3R400, 24 contacts, USB 3.2 Gen 2, 5 A, 20 V, unshielded, vertical surface-mount with through-hole solder termination.
| Parameter | Value |
|---|---|
| Series | DX07 |
| Mounting type | Surface Mount, Through Hole |
| Connector type | USB-C (USB TYPE-C) |
| Voltage - rated | 20V |
| Current rating | 5A |
| Positions | 24 |
| Mounting feature | Vertical |
| Operating temperature | -30°C ~ 80°C |
| Insulation color | Black |
| Gender | Receptacle |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide |
| Shielding | Unshielded |
| Termination | Solder |
| Mating cycles | 10000 |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Number of ports | 1 |
The DX07S024WJ3R400 is the 24-contact member of JAE Electronics' DX07 USB-C receptacle line, supporting USB 3.2 Gen 2 data rates. Rated 5 A at 20 V, the receptacle mates 10,000 cycles and terminates with a vertical surface-mount body plus through-hole solder posts.
Both parts share the same 24-contact count, vertical mounting orientation, unshielded body, and board guide feature — the DX07S024WJ3R400 is a functional equivalent to the DX07S024WJ1R350 for the same PCB footprint.
The DX07S024WJ3R400 is RoHS compliant per JAE Electronics' lifecycle record. No UL or IEC listing is cited in the available documentation.
