JAE Electronics DX4R005JJ2R1800

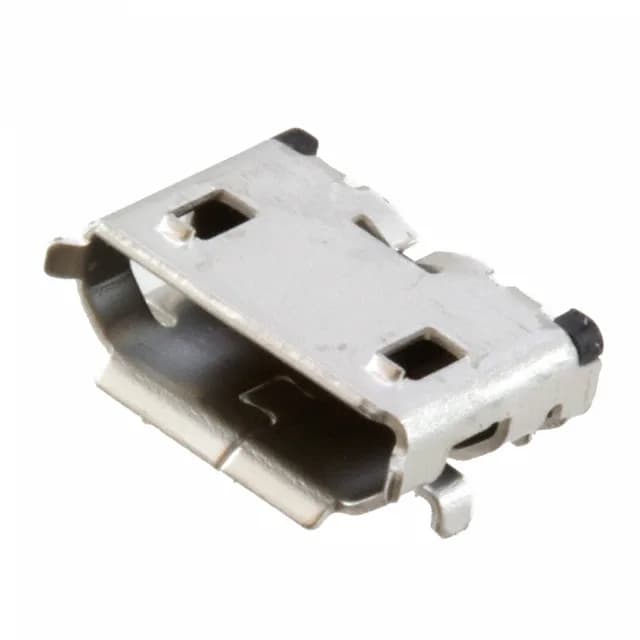

JAE DX4R005JJ2R1800 USB micro B Receptacle, 5 Contacts

MPN DX4R005JJ2R1800
Active

JAE Electronics DX4 series USB micro B receptacle, order code DX4R005JJ2R1800, 5 contacts, single port, 30 V, 0.5 A / 1.8 A, gold-plated contacts, surface-mount right-angle, solder termination.

$0.8500 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesDX4
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

DX4R005JJ2R1800 key specifications
ParameterValue
SeriesDX4
MountingSurface Mount, Right Angle; Through Hole
Connector typeUSB - micro B
Voltage - rated30V
Current rating0.5A, 1.8A
Positions5
Mounting featureHorizontal
Operating temperature-30°C ~ 80°C
Insulation colorBlack
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle

All specifications

DX4R005JJ2R1800 additional specifications
ParameterValue
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesPick and Place, Solder Retention
ShieldingUnshielded
TerminationSolder
Mating cycles10000
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

USB 2.0 micro B receptacle, 5 contacts

The DX4R005JJ2R1800 is a 5-contact USB micro B receptacle in JAE's DX4 series, rated for USB 2.0 signaling. Current rating is 0.5 A on signal contacts and 1.8 A on the power contact at 30 V; gold-plated contacts handle the 10,000 mating cycles.

Same-series sibling: DX4R005HJ5R2000

Within the DX4 micro B family the DX4R005JJ2R1800 shares the 5-contact count, gold plating, and 10,000-cycle rating with the DX4R005HJ5R2000 — the two differ only in packaging and colour, so the board footprint and mating half are identical.
