JAE Electronics DX4RNW5HJ3R1000 — USB / HDMI Cable Assemblies

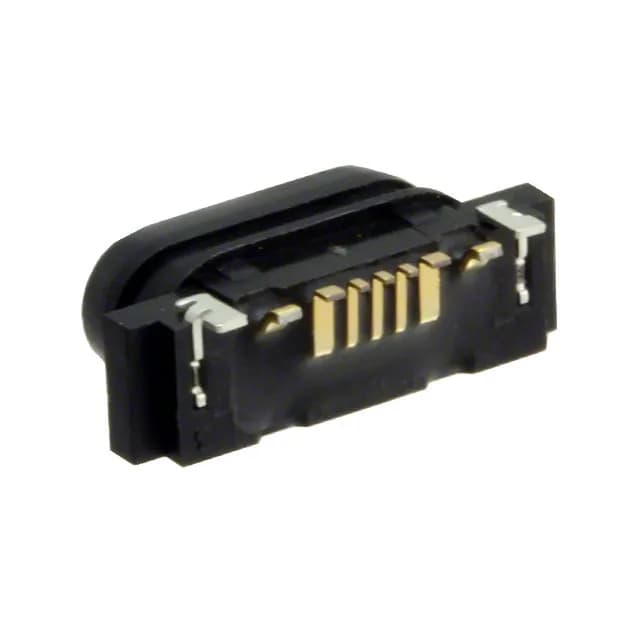

JAE DX4RNW5HJ3R1000 USB micro-B Receptacle, IPX7, SMT

MPNDX4RNW5HJ3R1000
Active

JAE Electronics DX4 series USB - micro B receptacle, order code DX4RNW5HJ3R1000, 5 contacts, USB 2.0, IPX7 waterproof, gold contact finish, shielded, surface-mount right-angle, solder termination.

$3.7000Ref. price · indicative, final on quote
JAE Electronics DX4RNW5HJ3R1000 datasheet (PDF)
RoHSROHS3 Compliant
SeriesDX4
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

DX4RNW5HJ3R1000 key specifications
ParameterValue
SeriesDX4
MountingSurface Mount, Right Angle
Connector typeUSB - micro B
Voltage - rated30V
Current rating0.5A, 1.8A
Positions5
IP ratingIPX7 - Waterproof
Mounting featureBottom Entry, Reverse Mount
Operating temperature-40°C ~ 85°C
Insulation colorBlack
Shell (Shielding material)Steel, Stainless
GenderReceptacle

All specifications

DX4RNW5HJ3R1000 additional specifications
ParameterValue
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesPotted, Solder Retention
ShieldingShielded
TerminationSolder
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Sealed USB micro-B for board-edge mounting

The DX4RNW5HJ3R1000 is a 5-contact USB 2.0 micro-B receptacle in JAE's DX4 series, specified for bottom-entry reverse-mount SMT with a right-angle orientation. IPX7-rated when mated; the potted body and solder-retention features keep the seal intact through the reflow cycle and in washdown environments.

Shielded body and gold contact finish

The steel/stainless shield and gold-plated contacts support the 30 V, 0.5 A / 1.8 A rating with the IPX7 seal active only when the mating plug is fully inserted.

Positioning within the DX4 series

Within the DX4 micro-B family, the DX4RNW5HJ3R1000 is the shielded, IPX7-sealed variant; the unshielded DX4R005HJ5R2000 and DX4R005JJ2R1800 share the same 5-contact USB 2.0 footprint and gold finish but omit the shield and ingress protection.

Frequently asked questions

Will the DX4RNW5HJ3R1000 drop into a panel designed for the DX4R005HJ5R2000?

The DX4RNW5HJ3R1000 adds a steel/stainless shield and IPX7 sealing that the unshielded DX4R005HJ5R2000 lacks. Both share the same 5-contact USB 2.0 micro-B footprint and gold plating, but the sealed variant requires board-edge clearance for the potted body and solder-retention features.
