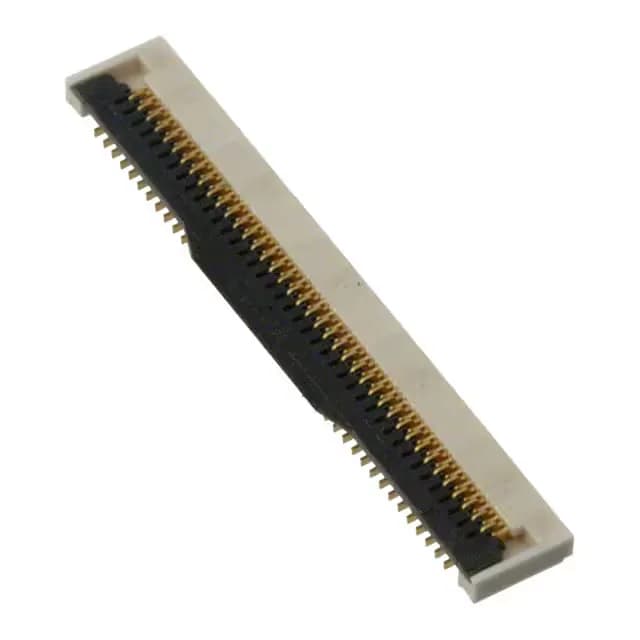

JAE Electronics FF0881SA1-R3000
MPNFF0881SA1-R3000
Active
CONN FPC BOTTOM 81POS 0.2MM R/A
$3.3400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesFF08
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FF08 |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Tabbed |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 50V |
| Current rating | 0.3A per Contact |
| Operating temperature | -40°C ~ 85°C |
| Housing color | Beige |
| Actuator color | Black |
| Contact material | Copper Alloy |
| Housing material | Plastic |
All specifications
| Parameter | Value |
|---|---|
| Actuator material | Plastic |
| Height above board | 0.039\" (1.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.008\" (0.20mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Zero Insertion Force (ZIF) |
| Termination | Solder |
| Mating cycles | 20 |
| Contact finish | Gold |
| Locking feature | Flip Lock |
| FFC, FCB thickness | 0.15mm |
| Positions | 81 |
| Contact finish thickness | 3.94µin (0.10µm) |
