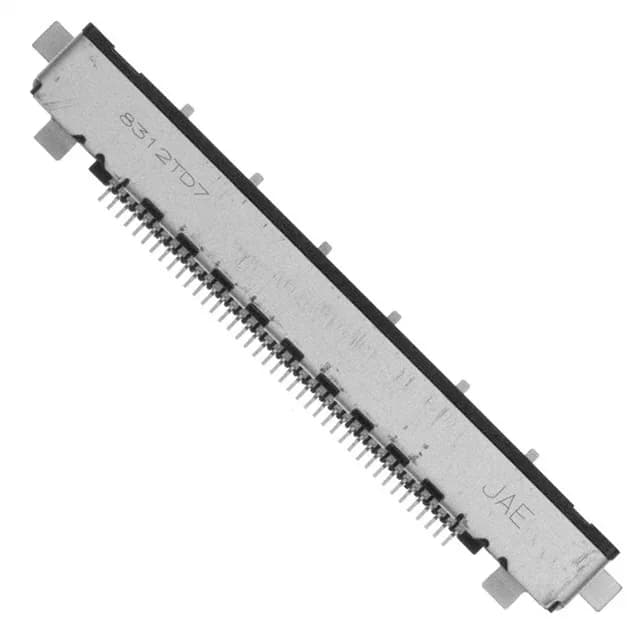

JAE Electronics FI-RE41S-HF-R1500
MPNFI-RE41S-HF-R1500
Active
CONN RCPT 41P 0.02 GOLD SMD R/A
$2.8500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFI-R
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FI-R |
| Type | Female Blade Socket |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Latch Holder |
| Current rating | 0.8A per Contact |
| Operating temperature | -40°C ~ 80°C |
| Contact material | Copper Alloy |
| Insulation height | 0.148\" (3.75mm) |
| Insulation material | Plastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Shielded, Solder Retention |
| Termination | Solder |
| Applications | General Purpose, Medical |
| Rows | 1 |
| Pitch | 0.020\" (0.50mm) |
| Positions | 41 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
