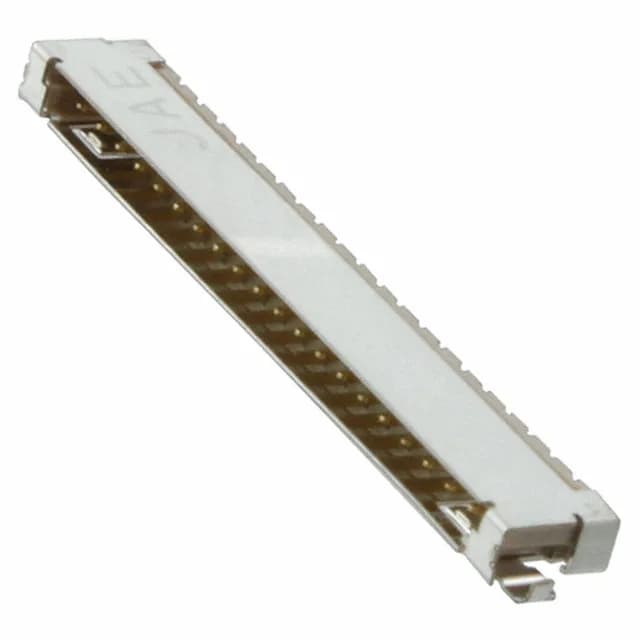

JAE Electronics FI-SE20P-HFE
MPNFI-SE20P-HFE
Active
CONN HEADER SMD R/A 20POS 1.25MM
$5.6100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFI
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FI |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Voltage rating | 200V |
| Current rating | 1A per Contact |
| Operating temperature | -40°C ~ 80°C |
| Contact material | Copper Alloy |
| Insulation color | Beige |
| Insulation height | 0.083\" (2.10mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Strip |
| Features | Shielded, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 20 |
| Contact finish - post | Tin or Tin-Alloy |
| Contact finish - mating | Gold |
