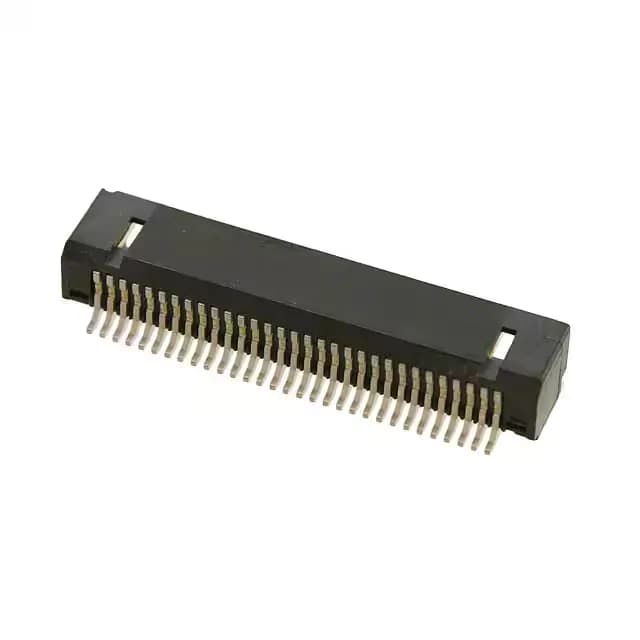

JAE Electronics FI-W31P-HFE-E1500
MPNFI-W31P-HFE-E1500
Active
CONN HEADER SMD R/A 31POS 1.25MM
$5.6300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesFI
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FI |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Friction Lock |
| Voltage rating | 200V |
| Current rating | 1A per Contact |
| Operating temperature | -40°C ~ 80°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.146\" (3.70mm) |
| Insulation material | Polyphenylene Sulfide (PPS), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 31 |
| Row spacing - mating | 0.055\" (1.40mm) |
| Contact finish - post | Tin or Tin-Alloy |
| Contact finish - mating | Gold |
| Contact length - mating | 0.094\" (2.40mm) |
