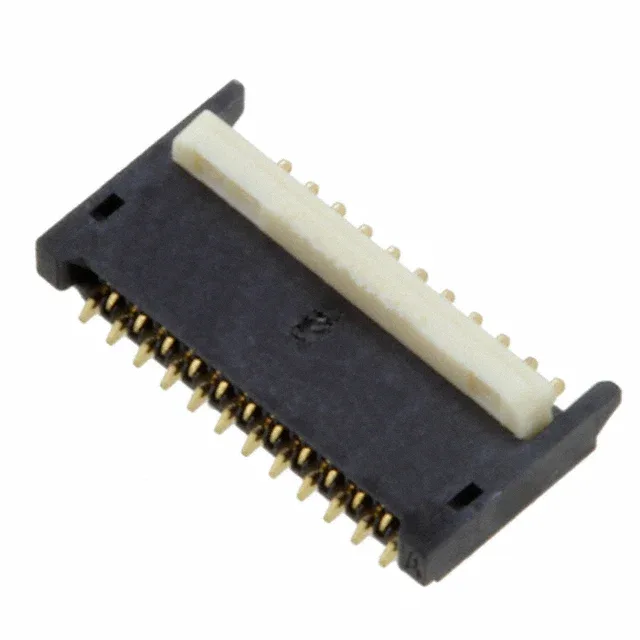

JAE Electronics FR02C023JA1-R5000
MPNFR02C023JA1-R5000
Active
CONN FPC 23POS 0.20MM R/A
$1.38Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesFR02
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FR02 |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Tabbed or Tapered |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Top and Bottom |
| Voltage rating | 50V |
| Current rating | 0.25A per Contact |
| Operating temperature | -40°C ~ 85°C |
| Housing color | Black |
| Actuator color | Natural |
| Contact material | Phosphor Bronze |
| Housing material | Plastic |
All specifications
| Parameter | Value |
|---|---|
| Actuator material | Plastic |
| Height above board | 0.032\" (0.81mm) |
| Pitch | 0.008\" (0.20mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Low Insertion Force (LIF) |
| Termination | Solder |
| Contact finish | Gold |
| Locking feature | Flip Lock, Backlock |
| FFC, FCB thickness | 0.20mm |
| Positions | 23 |
| Contact finish thickness | 3.94µin (0.10µm) |
