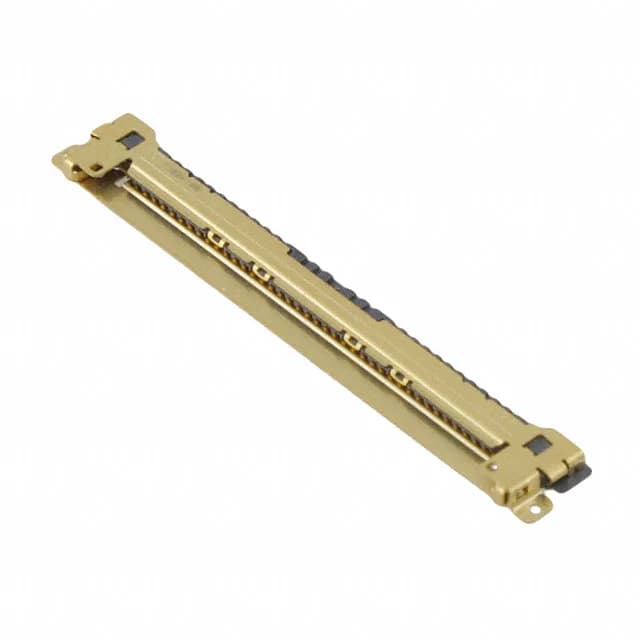

JAE Electronics HD1S040HA1R6000
MPNHD1S040HA1R6000
Active
CONN RCPT 40P 0.02 GOLD SMD R/A
$1.4600Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesHD
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | HD |
| Type | Outer Shroud Contact |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Detent Lock |
| Voltage rating | 100V |
| Operating temperature | -40°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation height | 0.039\" (1.00mm) |
| Insulation material | Plastic, Halogen Free |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
All specifications
| Parameter | Value |
|---|---|
| Features | Shielded, Solder Retention |
| Termination | Solder |
| Applications | General Purpose |
| Rows | 1 |
| Pitch | 0.020\" (0.50mm) |
| Positions | 40 |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 1.25µin (0.032µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
