JAE Electronics HJ1P050MA1R6000 — Panel-Mount & In-Line Circular

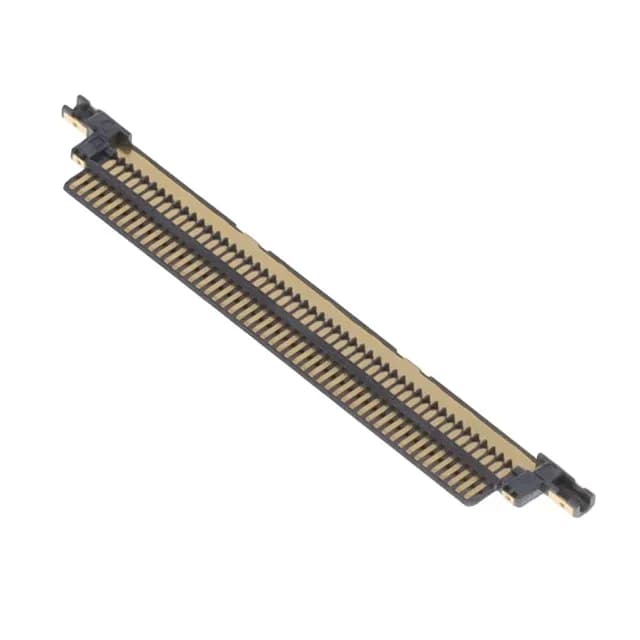

JAE HJ1P050MA1R6000 Plug, 50 Pos, 0.40mm Pitch

MPNHJ1P050MA1R6000
Active

JAE HJ1 series plug, 50 positions, 0.016" (0.40mm) pitch, 1 row, gold contact finish, free-hanging (in-line) solder termination, accepts 34-36 AWG discrete or ribbon cable.

$2.6700Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesHJ1
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

HJ1P050MA1R6000 specifications
ParameterValue
SeriesHJ1
Wire typeDiscrete or Ribbon Cable
TypeCenter Strip Contact
MountingFree Hanging (In-Line)
Connector typePlug
Wire gauge34-36 AWG, 36-44 AWG
Cable terminationSolder
Pitch0.016\" (0.40mm)
PackageTape & Reel (TR) Cut Tape (CT)
Contact finishGold
Rows1
Positions50

Product details

The JAE HJ1P050MA1R6000 is a 50-position plug from the HJ1 series, terminated by soldering discrete or ribbon cable wires directly to the center strip contact. The free-hanging (in-line) mount means it floats in the cable, not on a PCB, so the strain relief is on the wire bundle, not a solder joint.

This plug accepts two wire gauge ranges: 34-36 AWG and 36-44 AWG. The 36-44 AWG band covers the fine-wire end — micro-coax, flex circuits, and ultra-thin discrete leads — while the 34-36 AWG range gives a little more mechanical heft for ribbon cable assemblies. Termination is solder-only; there is no crimp pocket, so the wire is tinned and soldered to the center strip contact. The solder joint is the mechanical and electrical anchor — no secondary strain relief beyond the cable itself.

Frequently asked questions

Is HJ1P050MA1R6000 RoHS compliant?

Yes, listed as RoHS Compliant.

What wire gauge does HJ1P050MA1R6000 accept?

Accepts 34-36 AWG and 36-44 AWG discrete or ribbon cable.

Where can I buy HJ1P050MA1R6000?

Availability and pricing confirmed at quote time.
