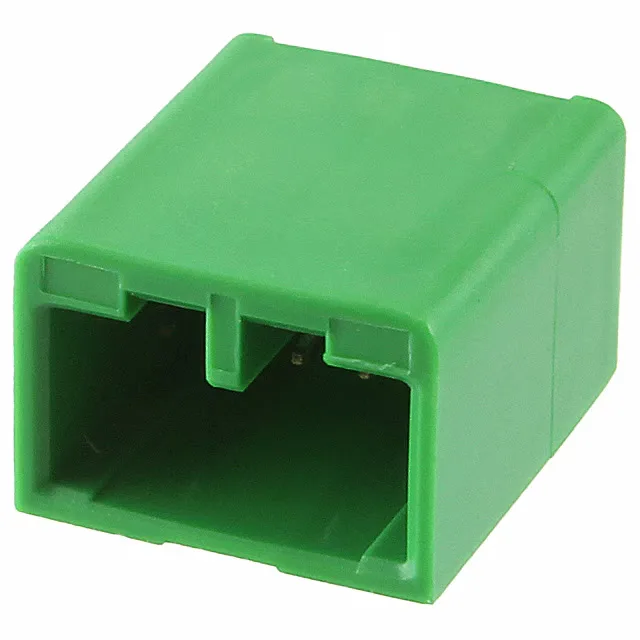

JAE Electronics IL-AG5-5P-S3T2
MPNIL-AG5-5P-S3T2
Active
CONN HEADER VERT 5POS 2.5MM
$2.03Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesIL-AG5
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | IL-AG5 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -40°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.717\" (18.20mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Mated stacking heights | 28.2mm |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Overall contact length | 0.594\" (15.09mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.331\" (8.40mm) |
