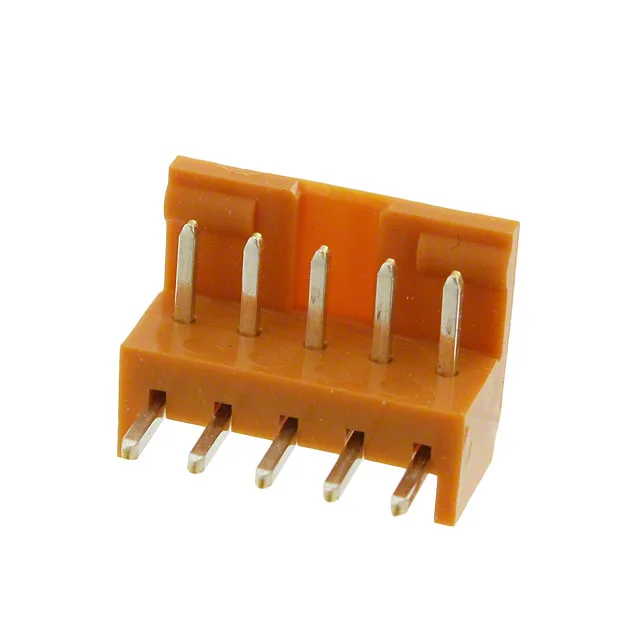

JAE Electronics IL-G-5P-S3L2-SA
MPNIL-G-5P-S3L2-SA
Active
CONN HEADER R/A 5POS 2.5MM
$0.68Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesIL-G
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | IL-G |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Current rating | 3A per Contact |
| Operating temperature | -40°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Brown |
| Insulation height | 0.236\" (6.00mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.157\" (4.00mm) |
