JAE Electronics JB5DS08MN11
MPNJB5DS08MN11
Active

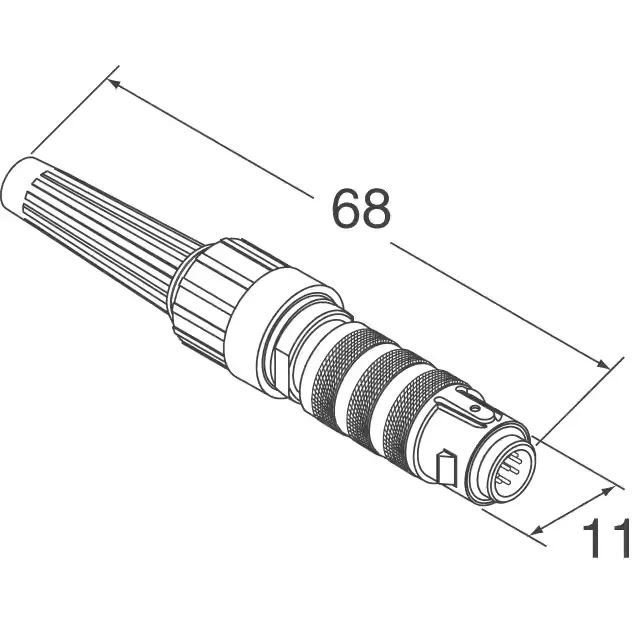

CONN PLUG MALE 8POS SOLDER CUP
$43.84Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesJB5
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | JB5 |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Fastening type | Push-Pull |
| Voltage rating | 200VAC |
| Current rating | 2A |
| IP rating | IP68 - Dust Tight, Waterproof |
| Cable opening | 0.177\" ~ 0.197\" (4.50mm ~ 5.00mm) |
| Operating temperature | -55°C ~ 85°C |
| Color | Black, Silver |
| Shell material | Zinc Alloy |
| Insert material | Synthetic Resin |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Copper Alloy |
| Primary material | Metal |
| Package | Tray |
| Features | Clamp, Strain Relief |
| Shielding | Shielded |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | Medical, Telecommunications, Test & Measurement |
| Shell finish | Nickel |
| Positions | 8 |
| Shell size - insert | S |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
