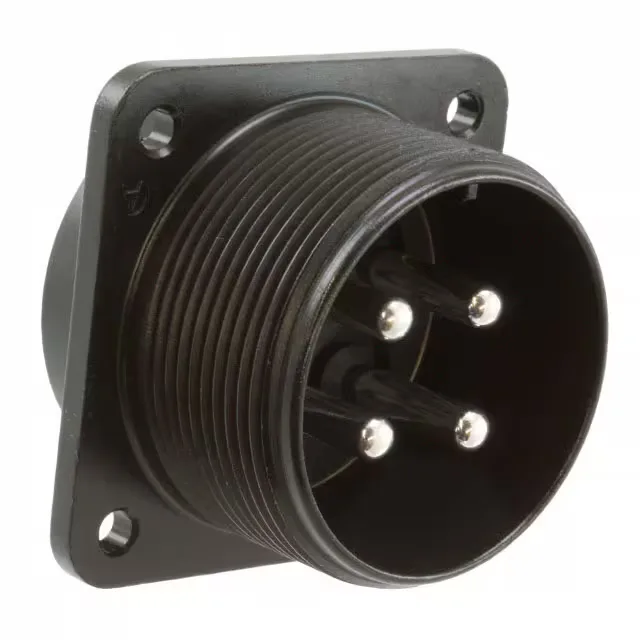

JAE Electronics JL04HV-2E22-22PE-B-R
MPNJL04HV-2E22-22PE-B-R
Active
CONN RCPT MALE 4P SOLDER CUP
$32.18Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesJL04HV
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | JL04HV |
| Mounting | Panel Mount |
| Connector type | Receptacle, Male Pins |
| Fastening type | Threaded |
| Current rating | 46A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange |
| Cable opening | 1.299\" (33.00mm) |
| Operating temperature | -55°C ~ 125°C |
| Color | Black |
| Shell material | Aluminum Alloy |
| Insert material | Silicon Rubber |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Copper Alloy |
| Primary material | Metal |
| Package | Bulk |
| Features | Ground |
| Orientation | N (Normal) |
| Termination | Solder Cup |
| Applications | Industrial, Medical, Telecommunications, Test Equipment & Measurement |
| Shell finish | Zinc |
| Positions | 4 (3 + PE) |
| Shell size - insert | 22-22 |
| Contact finish - mating | Silver |
