Panel-Mount Receptacle for Sealed Environments

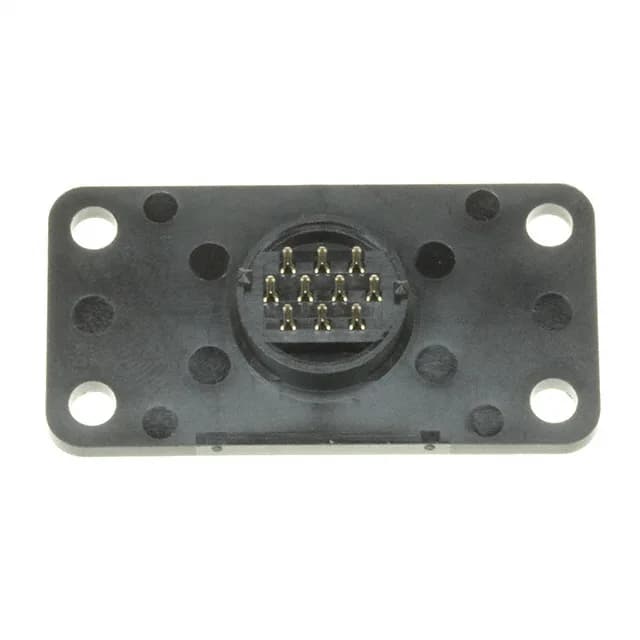

The JAE JN1AS10UL1 is a 10-position, panel-mount receptacle from the JN1 series, designed for applications where a dust-tight and waterproof seal is required. It uses male pins (pin contacts) and a Push-Twist fastening mechanism for quick, secure mating without tools. The connector is rated IP67 when mated, meaning it is protected against dust ingress and temporary immersion in water, making it suitable for outdoor or washdown environments. This member of the JN1 family carries a 3 A per contact current rating and a 200VAC voltage rating, with gold-plated mating contacts for reliable signal-level connections.
IP67 Sealing and Push-Twist Coupling
The IP67 ingress protection rating is the defining feature of this connector. When mated with the corresponding JN1 series plug, the synthetic resin housing and panel-mount flange seal the connection against dust and water. The Push-Twist fastening type locks the pair together with a quarter-turn, providing vibration resistance without the need for a threaded coupling nut. This makes the JN1AS10UL1 a practical choice for field-installed equipment, outdoor lighting, sensors, and portable machinery where a quick, reliable mate is needed.
Termination is via solder contacts, with the receptacle designed for panel mount and through-hole PCB mounting. The flange on the housing provides a stable mounting surface, and the 0.472" (12.00mm) cable opening accommodates a range of cable diameters. The N (Normal) orientation means the keyway is in the standard position, matching the mating plug without rotation.
