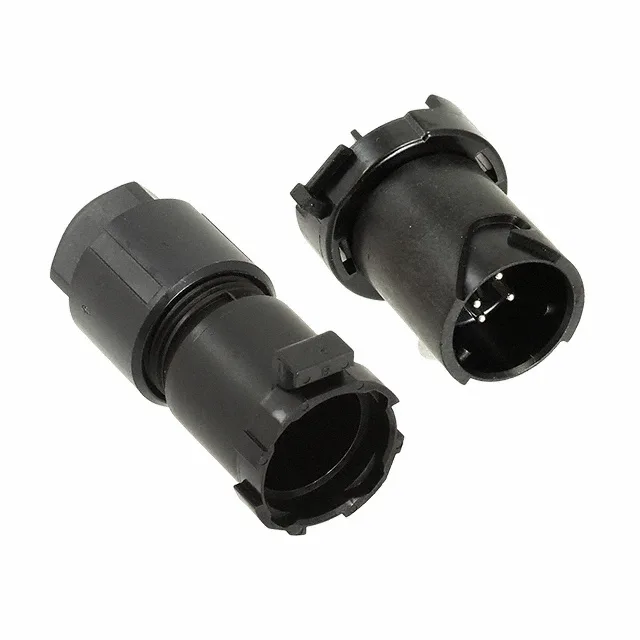

JAE Electronics JN1HS04MK1-R
MPNJN1HS04MK1-R
Active
CONN RCPT MALE 4P SOLDER CUP
$18.16Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesJN1
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | JN1 |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Male Pins |
| Fastening type | Push-Twist |
| Voltage rating | 200VAC |
| Current rating | 5A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Cable opening | 0.224\" ~ 0.287\" (5.70mm ~ 7.30mm) |
| Operating temperature | -20°C ~ 125°C |
| Color | Black |
| Shell material | Synthetic Resin |
| Insert material | Synthetic Resin |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Copper Alloy |
| Primary material | Plastic |
| Backshell material, plating | Synthetic Resin |
| Package | Bulk |
| Features | Backshell |
| Orientation | N (Normal) |
| Termination | Solder Cup |
| Positions | 4 (3 + PE) |
| Shell size - insert | S |
| Contact finish - mating | Silver |
