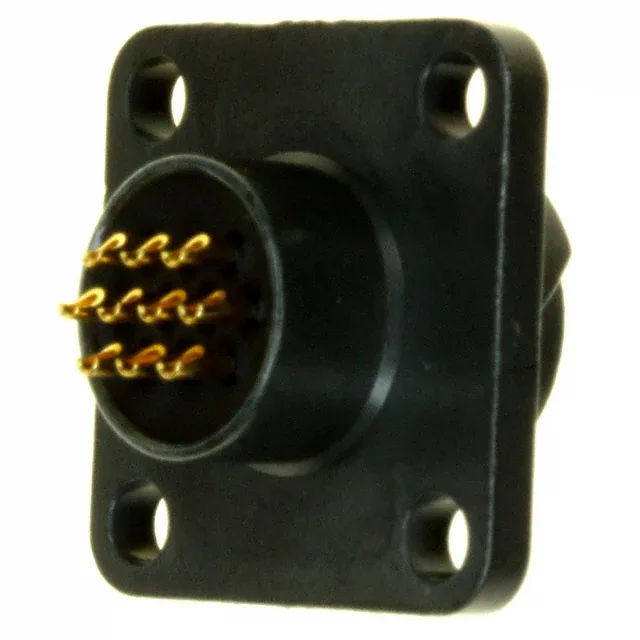

JAE Electronics JN2AS10ML2-R
MPNJN2AS10ML2-R
Active
CONN RCPT MALE 10POS SOLDER CUP
$33.6Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesJN2
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | JN2 |
| Mounting | Panel Mount |
| Connector type | Receptacle, Male Pins |
| Fastening type | Push-Twist |
| Voltage rating | 200VAC |
| Current rating | 3A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Flange |
| Cable opening | 0.472\" (12.00mm) |
| Operating temperature | -20°C ~ 100°C |
| Color | Black |
| Shell material | Zinc Alloy |
All specifications
| Parameter | Value |
|---|---|
| Insert material | Synthetic Resin |
| Contact material | Copper Alloy |
| Primary material | Metal |
| Package | Bag |
| Orientation | N (Normal) |
| Termination | Solder Cup |
| Shell finish | Zinc |
| Positions | 10 |
| Shell size - insert | S |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
