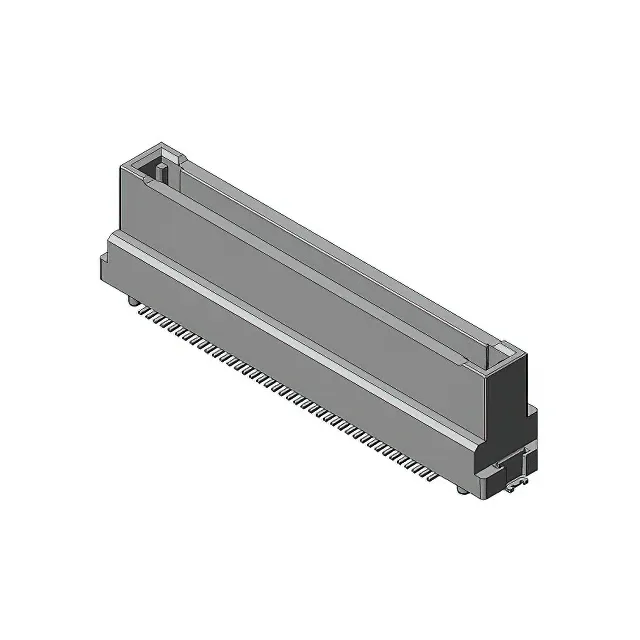

JAE Electronics MA01R080VADBR500
MPNMA01R080VADBR500
Active
CONN RIGID SIDE STR 80 POS
$6.23Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMA01
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MA01 |
| Mounting | Surface Mount |
| Connector type | Receptacle, Outer Shroud Contacts |
| Height above board | 0.339\" (8.60mm) |
| Mated stacking heights | 10mm, 16mm, 22mm |
| Pitch | 0.025\" (0.64mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide, Solder Retention |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 80 |
| Contact finish thickness | 4.00µin (0.100µm) |
