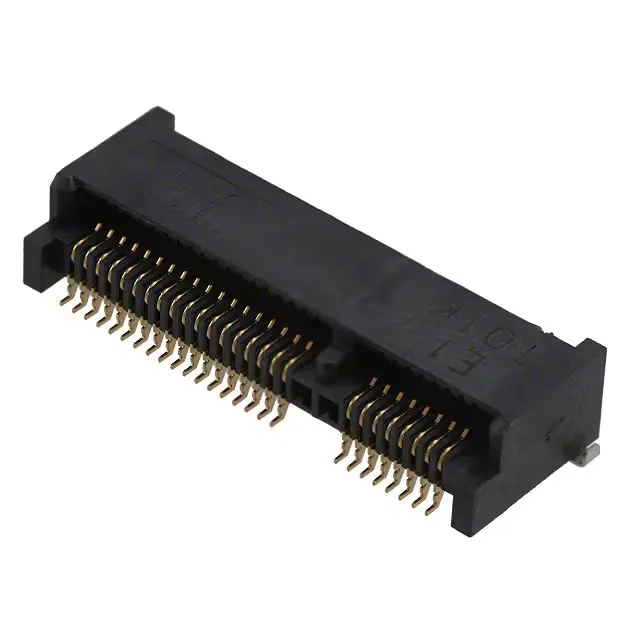

JAE Electronics MM60-52B1-E1-R650
MPNMM60-52B1-E1-R650
Active
CONN PCI EXP MIN FML 52POS 0.031
$2.12Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMM60
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MM60 |
| Card type | PCI Express Mini Card |
| Mounting | Surface Mount, Right Angle |
| Operating temperature | -40°C ~ 85°C |
| Contact material | Copper Alloy |
| Material - insulation | Thermoplastic |
| Pitch | 0.031\" (0.80mm) |
| Gender | Female |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide |
| Read out | Dual |
| Termination | Solder |
| Card thickness | 0.039\" (1.00mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 52 |
| Contact finish thickness | 3.94µin (0.10µm) |
