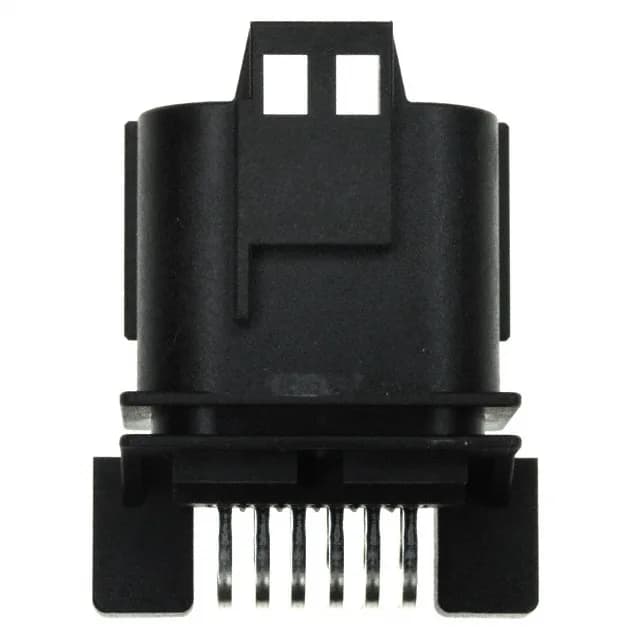

JAE Electronics MX23A12NF1
MPNMX23A12NF1
Active
CONN HEADER R/A 12POS 2.5MM
$6.8400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMX23A
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MX23A |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Current rating | 3A |
| IP rating | Waterproof |
| Operating temperature | -40°C ~ 125°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.720\" (18.30mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 12 |
| Row spacing - mating | 0.173\" (4.40mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.122\" (3.10mm) |
| Contact finish - mating | Tin |
