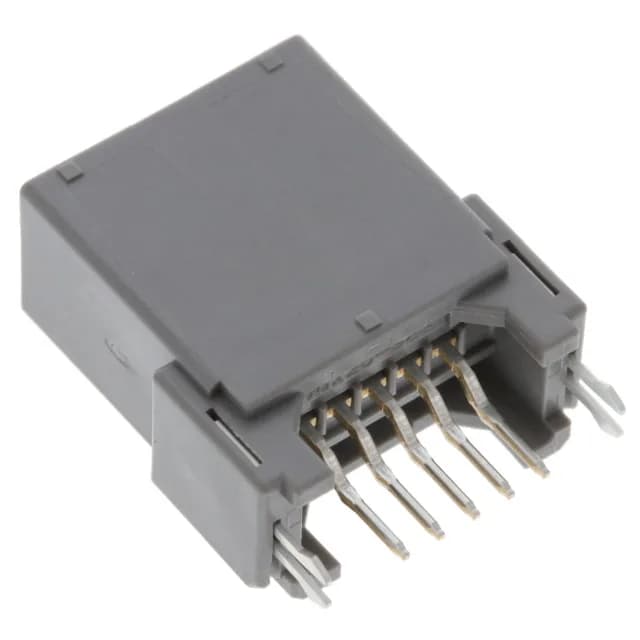

JAE Electronics MX34005UF1
MPNMX34005UF1
Active
CONN HEADER VERT 5POS 2.2MM
$2.1800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMX34
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MX34 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Current rating | 3A |
| Operating temperature | -40°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Gray |
| Insulation height | 0.594\" (15.09mm) |
| Insulation material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.087\" (2.20mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.303\" (7.70mm) |
