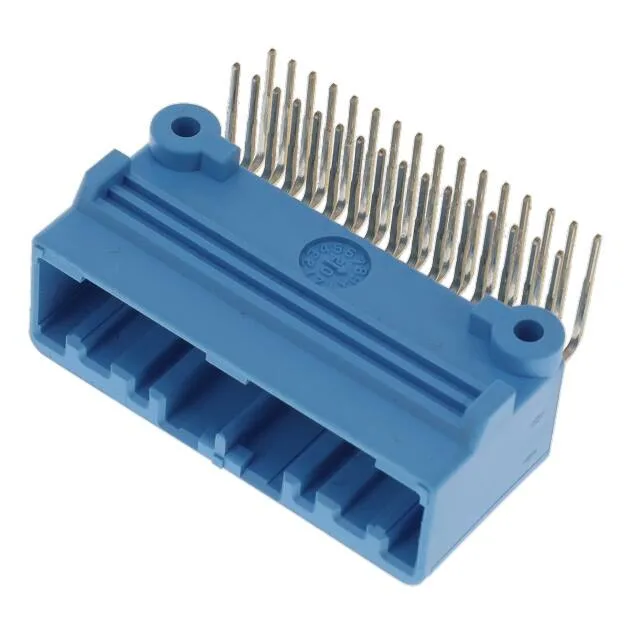

JAE Electronics MX34032NF4

JAE Electronics MX34032NF4

MPN MX34032NF4
Active

CONN PIN HEADER 32 POS R/A HIGH

$7.01 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
SeriesMX34
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

MX34032NF4 key specifications
ParameterValue
SeriesMX34
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Contact materialBrass
Insulation colorBlue
Insulation height0.626\" (15.90mm)
Insulation materialSyndiotactic Polystyrene (SPS), Glass Filled
StyleBoard to Cable/Wire
PackageTube
FeaturesMounting Flange
ShroudingShrouded - 4 Wall

All specifications

MX34032NF4 additional specifications
ParameterValue
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.087\" (2.20mm)
Positions32
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin
Contact length - post0.126\" (3.20mm)
Contact finish - matingTin
Contact length - mating0.303\" (7.70mm)
