JAE Electronics MX34R08HF4T — Pin Headers

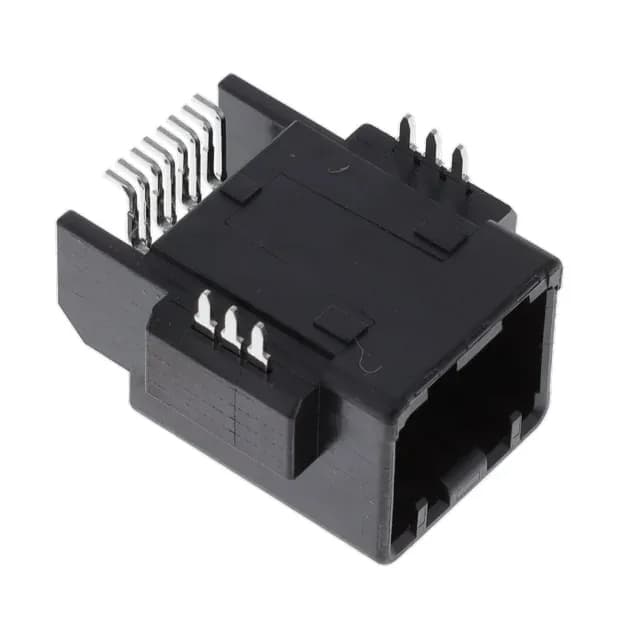

JAE Electronics MX34R08HF4T

MPNMX34R08HF4T
Active

CONN HEADER SMD R/A 8POS 2.2MM

$4.2900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMX34R
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

MX34R08HF4T key specifications
ParameterValue
SeriesMX34R
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Current rating3A
Operating temperature-40°C ~ 85°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.543\" (13.80mm)
Insulation materialPolyphenylene Sulfide (PPS), Glass Filled
StyleBoard to Cable/Wire

All specifications

MX34R08HF4T additional specifications
ParameterValue
PackageTray
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsAutomotive
Contact shapeSquare
Rows2
Pitch0.087\" (2.20mm)
Positions8
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin
Contact finish - matingTin
Contact length - mating0.303\" (7.70mm)
