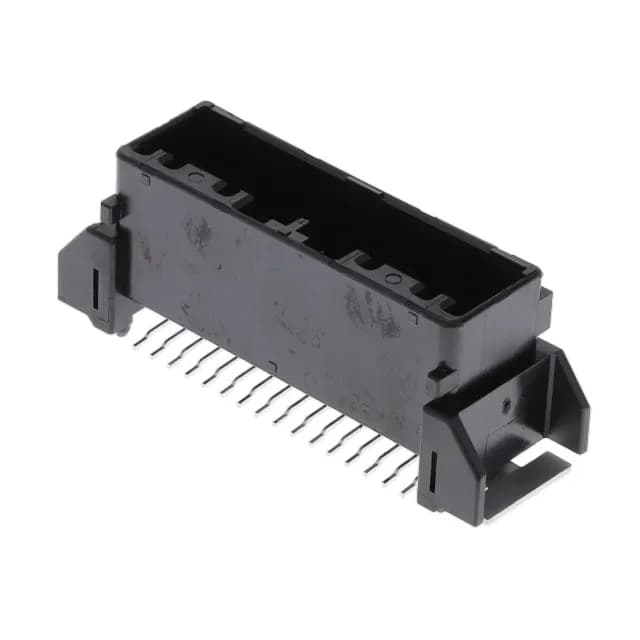

JAE Electronics MX34R32VF1
MPNMX34R32VF1
Active
CONN HEADER SMD 32POS 2.2MM
$4.2400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMX34R
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MX34R |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Current rating | 3A |
| Operating temperature | -40°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation material | Polyphenylene Sulfide (PPS), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide, Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.087\" (2.20mm) |
| Positions | 32 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
