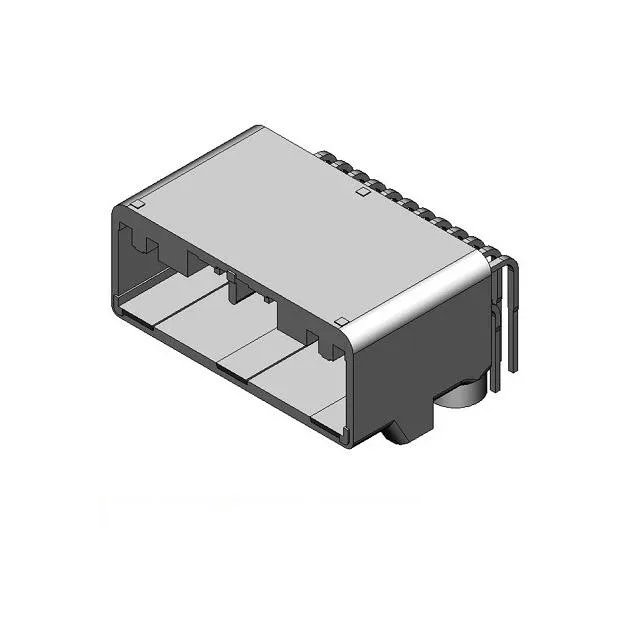

JAE Electronics MX84B024NF2
MPNMX84B024NF2
Active
CONN PIN HEADER 24 POS R/A PHEV/
$5.88Ref. price · indicative, final on quote
SeriesMX84B
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MX84B |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Contact material | Brass |
| Insulation color | Aqua |
| Insulation height | 0.626\" (15.90mm) |
| Insulation material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.087\" (2.20mm) |
| Positions | 24 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.303\" (7.70mm) |
