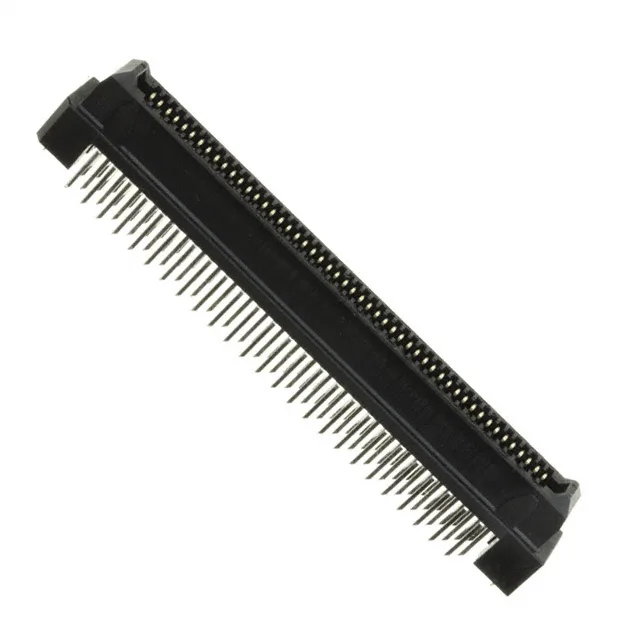

JAE Electronics TX24-100R-10ST-H1E
MPNTX24-100R-10ST-H1E
Active
CONN RCPT 100POS VERT GOLD
$3.13Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesTX24
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TX24 |
| Mounting | Through Hole |
| Connector type | Receptacle, Outer Shroud Contacts |
| Height above board | 0.563\" (14.30mm) |
| Mated stacking heights | 16mm, 18mm, 22mm |
| Pitch | 0.050\" (1.27mm) |
| Package | Tray |
| Features | Board Lock |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 100 |
| Contact finish thickness | 4.00µin (0.100µm) |
