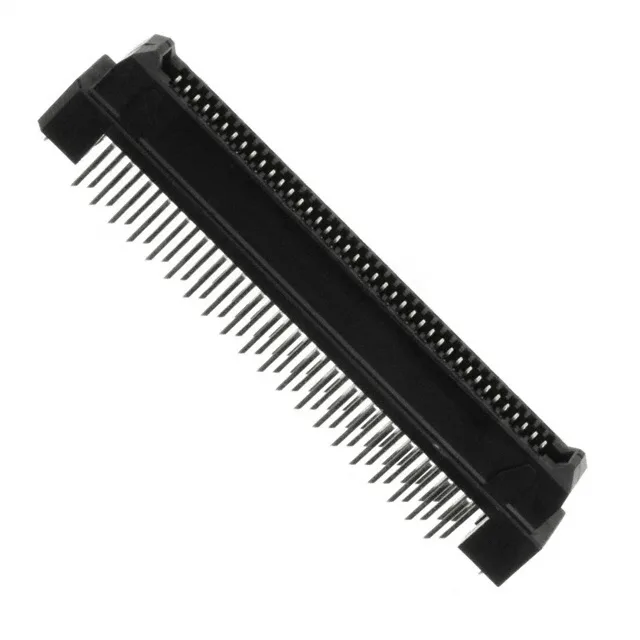

CONN RCPT 80POS VERT GOLD
$2.75Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | TX24 |
| Mounting type | Through Hole |
| Connector type | Receptacle, Outer Shroud Contacts |
| Height above board | 0.563\" (14.30mm) |
| Mated stacking heights | 16mm, 18mm, 22mm |
| Pitch | 0.050\" (1.27mm) |
| Package | Tray |
| Features | Board Lock |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 80 |
| Contact finish thickness | 4.00µin (0.100µm) |
Sourcing this connector
JAE Electronics TX24-80R-10ST-H1E is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against JAE Electronics and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
