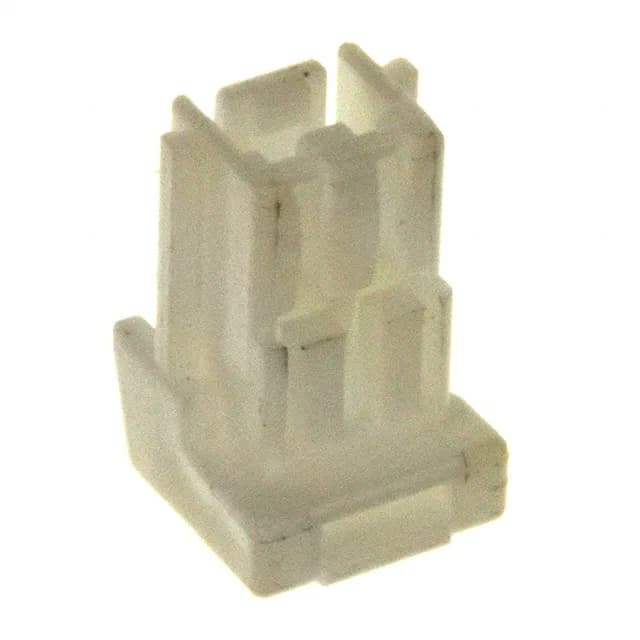

JST ZE series receptacle housing, order code ZER-02V-S, 2 positions, single row, 1.50mm pitch, natural PBT, free hanging in-line, latch holder fastening, crimp termination, contacts not included.
| Parameter | Value |
|---|---|
| Series | ZE |
| Mounting | Free Hanging (In-Line) |
| Connector size | Receptacle |
| Color | Natural |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Pitch | 0.059" (1.50 mm) |
| Package | Bulk |
| Positions | 2 |
| Gender (Contact) | Female Socket |
| Locking (Fastening) | Latch Holder |
| Rows | 1 |
The ZER-02V-S is the 2-position member of JST's ZE series receptacle housing line. It carries a 1.50mm pitch, mounts free hanging in-line, and uses a latch holder for retention.
Within the ZE series the ZER-02V-S carries 2 positions against the 12 of the ZER-12V-S — the pitch, material, and mounting are shared across the series, so match the position count to circuit count.
