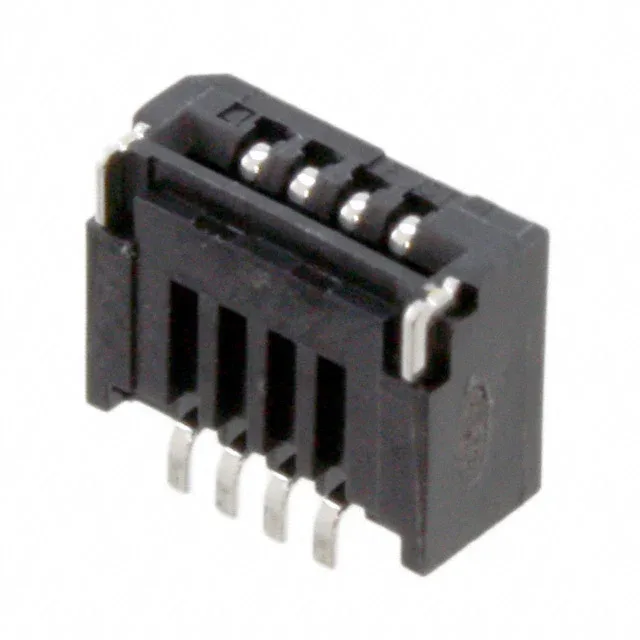

04FMN-SMT-A-TF JST FFC Connector, 4 Pos, 1mm Pitch

MPN04FMN-SMT-A-TF
Active

JST FMN series FFC connector, 04FMN-SMT-A-TF, 4 positions, 0.039" (1.00mm) pitch, SMT right-angle, top-contact, tin-plated phosphor bronze contacts, rated 0.5 A per circuit at 50 V.

$0.4500Ref. price · indicative, final on quote
04FMN-SMT-A-TF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

04FMN-SMT-A-TF Technical Specifications
ParameterValue
SeriesFMN
Mounting typeSurface Mount, Right Angle
Cable end typeStraight
Flat flex typeFFC
Connector (Contact type)Contacts, Top
Voltage rating50V
Current rating0.5A
Operating temperature-25°C ~ 85°C
Housing colorBlack
Contact materialPhosphor Bronze
Housing materialPolyamide (PA6T), Nylon 6T
Height above board0.118\" (3.00mm)
Material flammability ratingUL94 V-0
Pitch0.039\" (1.00mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesLow Insertion Force (LIF)
TerminationSolder
Contact finishTin
FFC, FCB thickness0.30mm
Positions4

Product details

Board-fit and footprint

The 04FMN-SMT-A-TF is a 4-position, 0.039" (1.00mm) pitch FFC connector from JST's FMN series. It mounts surface-mount, right-angle, so the FFC cable enters parallel to the board surface — a common layout for tight z-height enclosures. The connector accepts 0.30mm thick FFC with contacts on the top side. The 0.118" (3.00mm) height above board keeps the assembly low-profile.

Rated for signal duty

The housing is UL94 V-0 rated polyamide (PA6T, Nylon 6T), and the operating temperature range is -25°C to 85°C.

The 04FMN-SMT-A-TF uses a Low Insertion Force (LIF) contact design — no actuator lever. The FFC is inserted straight into the top-contact slot and held by the contact spring force. Termination is solder to the board pads.

Frequently asked questions

What is the closest functional second-source for 04FMN-SMT-A-TF?

The 04FMN-BMTTN-A-TF and 04FMN-BMT-A-TF(LF)(SN) are vertical-mount variants of the same 4-position, 1.00mm pitch FMN series. They share the same current rating, voltage, and FFC thickness, but the contact orientation is vertical (1-sided) rather than right-angle top-contact. They are not drop-in replacements — the board footprint and cable entry angle differ.

Does 04FMN-SMT-A-TF have a locking feature?

No actuator or locking latch. The connector uses a Low Insertion Force (LIF) contact design where the FFC is held by spring tension from the tin-plated contacts. For vibration-prone applications, consider a ZIF (zero insertion force) connector with a locking actuator.
