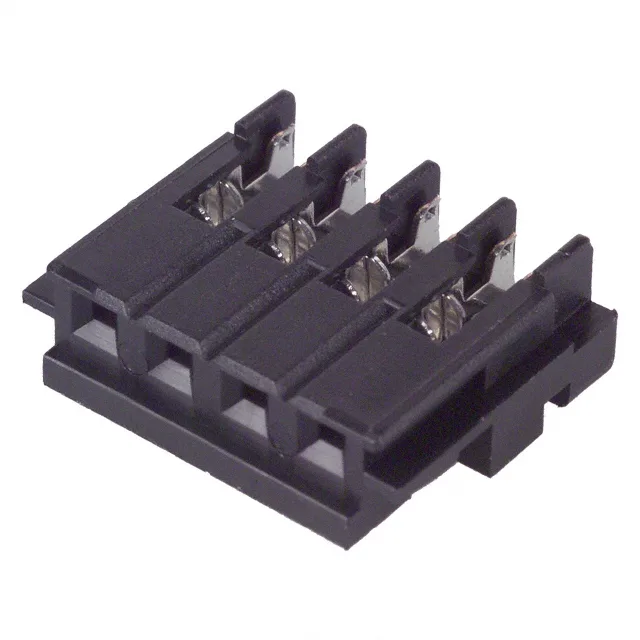

JST HR series, Receptacle, 4 Position, 1 Row, 0.098" (2.50mm) Pitch, IDC, Tin, Free Hanging, Detent Lock, 24 AWG
| Parameter | Value |
|---|---|
| Series | HR |
| Wire type | Discrete |
| Gender | Female Socket |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Detent Lock |
| Wire gauge | 24 AWG |
| Cable termination | IDC |
| Color | Black |
| Pitch | 0.098\" (2.50mm) |
| Package | Bulk |
| Features | Closed End |
| Contact finish | Tin |
| Rows | 1 |
| Positions | 4 |
The JST 04HR-4K-P-N< is a 4-position receptacle from the HR series, designed for mass-termination of discrete 24 AWG wire using an IDC (Insulation Displacement Contact) termination. Tin-plated contacts and a detent lock provide a reliable, vibration-resistant connection for internal wiring in consumer electronics, appliances, and industrial control panels. The closed-end housing prevents pin stubbing during mating.
The pitch is 0.098" (2.50mm), which is standard for the JST HR series and matches the footprint of mating HR series headers.
Yes, the IDC termination is specified for 24 AWG discrete wire. The insulation is displaced during termination — no stripping or crimping is needed.
This part is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at the time of quote — submit an RFQ for your required quantity.
