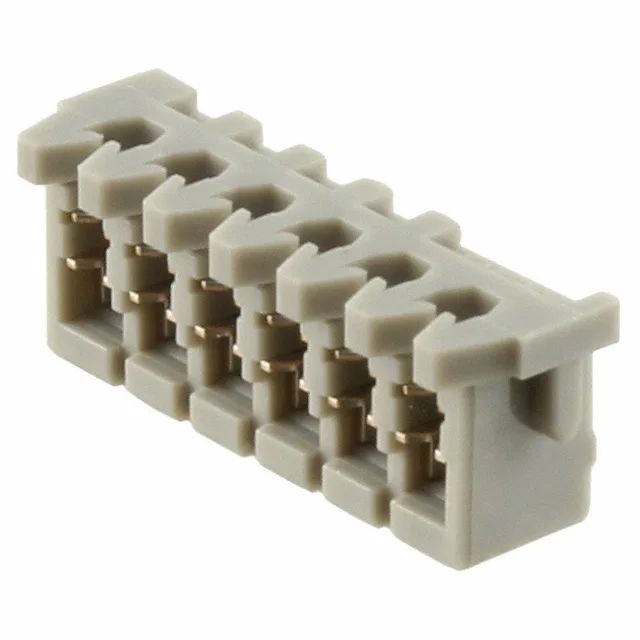

06KR-6H-P — JST product photo
JST

JST 06KR-6H-P KR Series Socket, 6-Pin IDC, 2.00mm Pitch

MPN06KR-6H-P
Active

JST KR series, 6-position IDC socket, 2.00mm pitch, 1 row, free-hanging, tin-plated female contacts, 26 AWG discrete wire, gray housing, bulk.

$0.4800Ref. price · indicative, final on quote
06KR-6H-P datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

06KR-6H-P Technical Specifications
ParameterValue
SeriesKR
Wire typeDiscrete
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeSocket
Wire gauge26 AWG
Cable terminationIDC
ColorGray
Pitch0.079\" (2.00mm)
PackageBulk
Contact finishTin
Rows1
Positions6

Product details

The JST 06KR-6H-P is a 6-position IDC socket from the KR series, designed for mass-termination of 26 AWG discrete wire without pre-stripping or crimping.

Termination is IDC — the 26 AWG wire is pressed into the insulation-displacement slot, cutting through the jacket and making contact with the tin-plated beam in one step. The free-hanging housing mates with a matching 2.00 mm pitch pin header (KR series male pin header, sold separately). No secondary retention feature is listed, so strain relief on the cable bundle is recommended for high-vibration installations.

Frequently asked questions

What is the pitch of 06KR-6H-P?

The pitch is 2.00 mm (0.079"), which sets the footprint for the mating pin header.

What wire gauge does 06KR-6H-P accept?

It accepts 26 AWG discrete wire via IDC termination.

Does 06KR-6H-P mate with a specific header?

Yes, it mates with a JST KR series 2.00 mm pitch pin header (male pins, sold separately).
