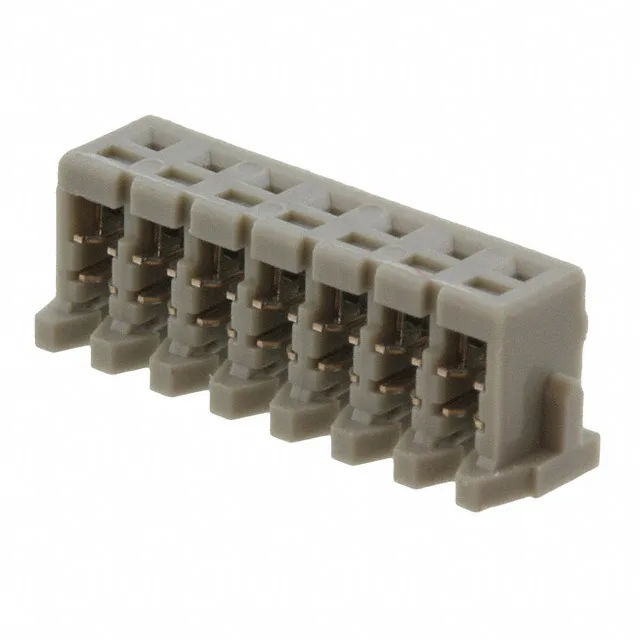

JST KR series IDC socket, 07KR-6H-P, 7 positions, 1 row, 2.00 mm pitch, 26 AWG, tin-plated female contacts, free-hanging in-line mount.
| Parameter | Value |
|---|---|
| Series | KR |
| Wire type | Discrete |
| Gender | Female Socket |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Socket |
| Wire gauge | 26 AWG |
| Cable termination | IDC |
| Color | Gray |
| Pitch | 0.079\" (2.00mm) |
| Package | Bulk |
| Contact finish | Tin |
| Rows | 1 |
| Positions | 7 |
The JST 07KR-6H-P is a 7-position IDC socket from the KR series, terminated to discrete 26 AWG wire rather than ribbon cable.
This socket terminates via IDC (insulation displacement) to discrete 26 AWG wire — not the usual ribbon cable. The IDC slot geometry is sized for the insulation diameter of a single round conductor, so the wire type matters: use solid or standard-stranded 26 AWG with a compatible insulation OD.
The 07KR-6H-P mates with the JST KR series pin header (male side).
The mating half is a JST KR series pin header with 7 positions and 2.00 mm pitch. The header must match the single-row layout and the tin contact finish for the same duty cycle.
