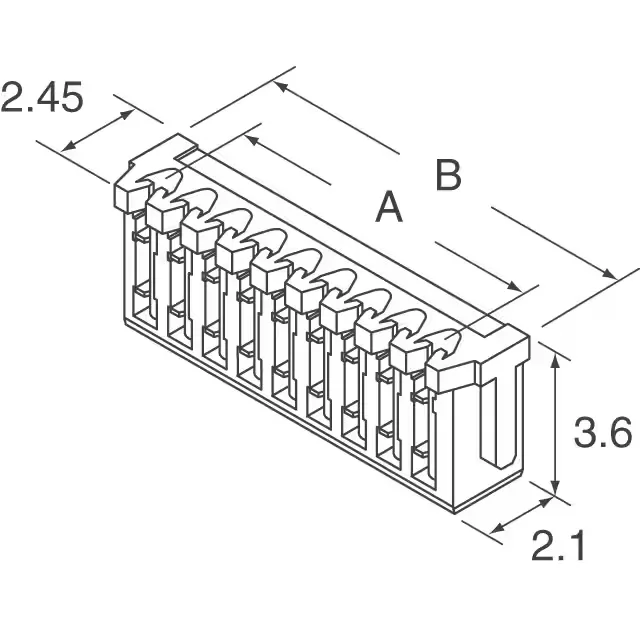

JST SR series receptacle, 7 positions, 1.00mm pitch, 1 row, IDC termination, tin contacts, free-hanging, natural housing, 30 AWG.
| Parameter | Value |
|---|---|
| Series | SR |
| Wire type | Discrete |
| Gender | Female Socket |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Wire gauge | 30 AWG |
| Cable termination | IDC |
| Color | Natural |
| Pitch | 0.039\" (1.00mm) |
| Package | Bulk |
| Features | Closed End |
| Contact finish | Tin |
| Rows | 1 |
| Positions | 7 |
The JST 07SR-3S is a 7-position receptacle from the SR series, terminated via IDC for 30 AWG discrete wire. Tin contacts suit moderate-duty signal connections where mating cycles stay under a few dozen. The closed-end feature prevents wire push-through on the last position.
No wire stripping needed; the insulation is displaced by the contact tines. The free-hanging mount means this receptacle lives on the cable end, not the board. Confirm your wire jacket OD fits the slot depth.
The pitch is 0.039" (1.00 mm), which governs the PCB footprint spacing and wire routing density.
Yes — the IDC termination is specified for 30 AWG discrete wire. The slot geometry is sized for that gauge; using a different wire size will not achieve a reliable connection.
