JST 08HR-4K

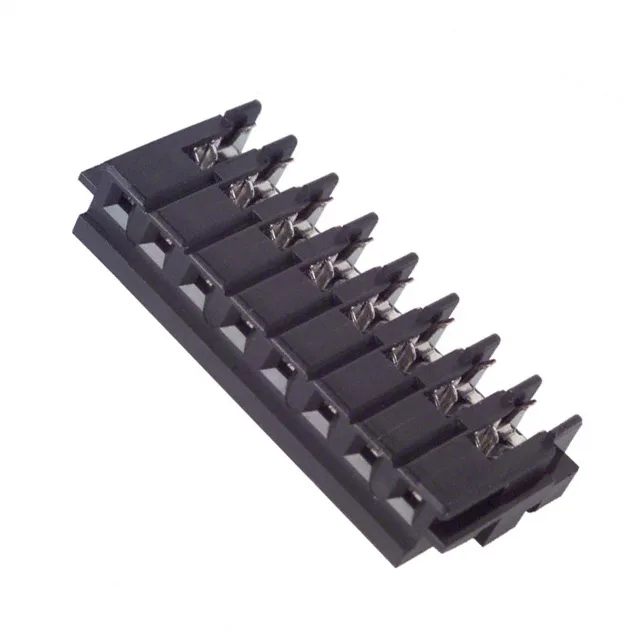

JST 08HR-4K HR Series Receptacle, 8 Pos, 2.50mm, IDC

MPN 08HR-4K
Active

JST HR series receptacle, 8 positions, 1 row, 0.098" (2.50mm) pitch, IDC termination, 24 AWG, Tin-Lead contacts, detent lock, free hanging, black.

$0.4300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

08HR-4K specifications
ParameterValue
SeriesHR
Wire typeDiscrete
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeDetent Lock
Wire gauge24 AWG
Cable terminationIDC
ColorBlack
Pitch0.098\" (2.50mm)
PackageBulk
FeaturesClosed End
Contact finishTin-Lead
Rows1
Positions8

Product details

8-Position IDC Receptacle for Discrete Wire Harnesses

The 0.098" (2.50mm) pitch is standard across the HR family, keeping the footprint consistent whether you use a 2- or 16-position housing. The black housing and closed-end design prevent wire push-through on the last cavity.

Wiring and Termination — IDC Fit

This works reliably only with the specified 24 AWG wire; a different gauge will either not cut through the insulation or will damage the contact beam. The Tin-Lead contact finish is typical of older JST IDC parts; if your build requires RoHS compliance, check the material declaration for this date code.

Mating and Cross-Reference

The detent lock on the receptacle engages a matching notch on the header. No direct second-source cross is listed; the HR series is JST-proprietary in its IDC variant, so the build locks to the JST header.
