08KR-6H-P — JST product photo
JST

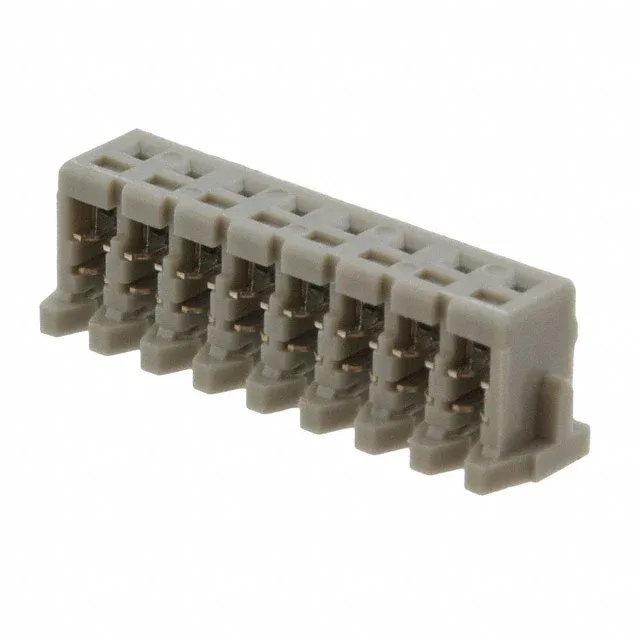

08KR-6H-P KR Series IDC Socket, 8 Pos, 2.00mm Pitch

MPN08KR-6H-P
Active

JST KR series IDC socket, 08KR-6H-P, 8 positions, 0.079" (2.00mm) pitch, single row, tin-plated female contacts, 26 AWG discrete wire, free-hanging, gray housing, bulk.

$0.4500Ref. price · indicative, final on quote
08KR-6H-P datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

08KR-6H-P Technical Specifications
ParameterValue
SeriesKR
Wire typeDiscrete
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeSocket
Wire gauge26 AWG
Cable terminationIDC
ColorGray
Pitch0.079\" (2.00mm)
PackageBulk
Contact finishTin
Rows1
Positions8

Product details

The JST 08KR-6H-P is an 8-position IDC socket from the KR series, terminated to 26 AWG discrete wire without crimping. The gray housing and tin-plated female contacts suit internal, low-corrosion environments where moderate mating cycles are the norm.

8 Positions vs 7 — The Selection Delta

The 08KR-6H-P carries 8 positions against the 7 positions of the 07KR-6H-P at the same 0.079" (2.00mm) pitch and 26 AWG IDC termination. The extra circuit is the only functional difference — same housing profile, same termination tooling, same mating header family.

Frequently asked questions

Will 08KR-6H-P drop into a panel wired for 07KR-6H-P?

Yes — same pitch, same termination, same housing dimensions. The only difference is the 8th circuit, so the footprint and wiring layout are identical for the first 7 positions.
