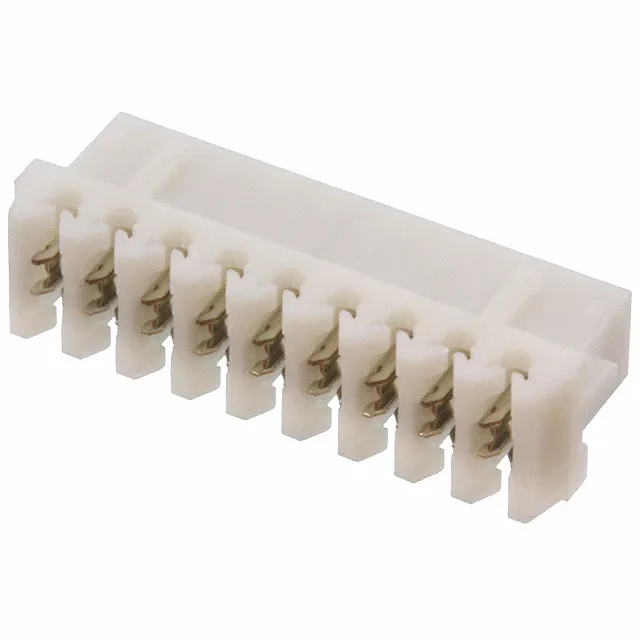

09KR-D6S-P — JST product photo
JST

JST 09KR-D6S-P KRD Series Socket, 9 Pos, 2.00 mm Pitch, IDC

MPN09KR-D6S-P
Active

JST KRD series IDC socket, 9 positions, 0.079" (2.00 mm) pitch, 1 row, tin female socket contacts, free-hanging right-angle, 26 AWG, bulk.

$0.7700Ref. price · indicative, final on quote
09KR-D6S-P datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

09KR-D6S-P Technical Specifications
ParameterValue
SeriesKRD
Wire typeDiscrete
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeSocket
Wire gauge26 AWG
Cable terminationIDC
ColorNatural
Pitch0.079\" (2.00mm)
PackageBulk
Contact finishTin
Rows1
Positions9

Product details

The JST 09KR-D6S-P is a 9-position IDC socket from the KRD series, designed for discrete 26 AWG wire. It terminates the cable by pressing the conductor into the slot — no crimp tool needed, which simplifies harness assembly for low-to-medium volume builds.

Termination and Wire Gauge Constraint

The IDC termination is designed for 26 AWG discrete wire only. Using a different gauge will not seat correctly in the slot — the insulation displacement blades are sized for that specific conductor diameter. The tin-plated female socket contacts are rated for low-cycle applications; if the harness sees frequent disconnect/reconnect, consider a gold-plated alternative in the same pitch class.

Frequently asked questions

What is the pitch of JST 09KR-D6S-P?

The pitch is 0.079" (2.00 mm), which sets the footprint for the mating header and the board layout.

Is 09KR-D6S-P RoHS compliant?

Yes, the 09KR-D6S-P is RoHS compliant per the listing.
