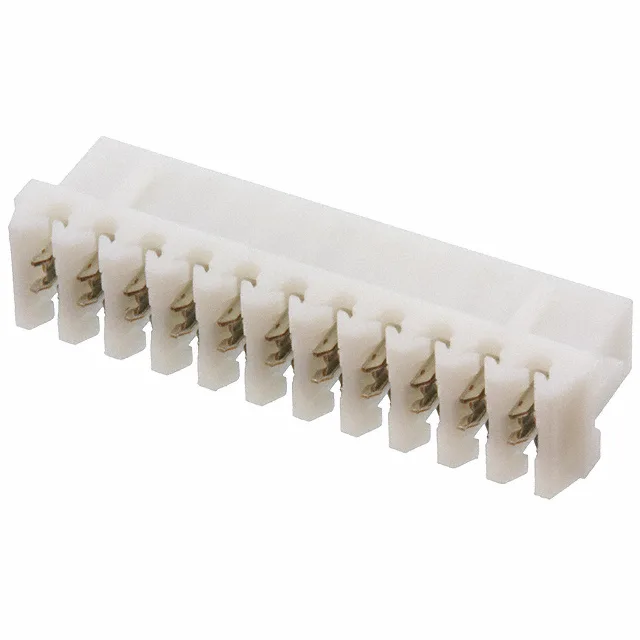

11KR-D6S-P: JST KRD 11-Position IDC Socket
The JST 11KR-D6S-P is an 11-position IDC socket from the KRD series, designed for discrete wire termination at a 0.079" (2.00mm) pitch. It uses a female socket contact with tin plating, arranged in a single row, and terminates via IDC — no crimp tool required, the wire is pressed directly into the insulation-displacement slot. The housing is natural (uncolored) and comes in bulk packaging. This connector is meant for internal wire-to-board or wire-to-wire harnesses where the 2.00mm pitch saves board space compared to the more common 2.54mm pitch, and where the assembly is a one-time mate — tin contacts don't like repeated disconnect cycles.
Wire Gauge and Termination — What 26 AWG and IDC Mean
The 11KR-D6S-P is specified for 26 AWG discrete wire.
Mounting and Orientation — Free-Hanging Right Angle
This is a free-hanging (in-line) socket with a right-angle cable exit. The right-angle orientation means the wire runs parallel to the mating face.
