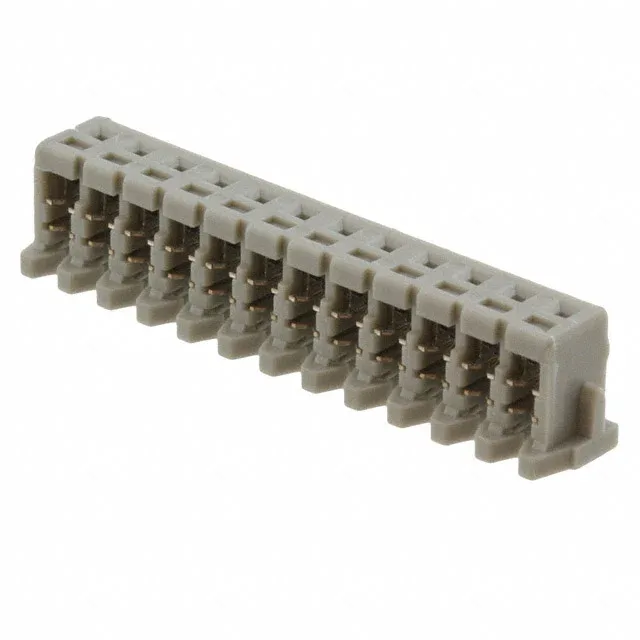

12KR-6H-P — JST product photo

JST 12KR-6H-P KR Series Socket, 12 Pos, 2.00mm IDC

MPN12KR-6H-P
Active

JST KR series socket, 12 positions, 1 row, 0.079" (2.00mm) pitch, IDC termination, 26 AWG, tin contacts, free-hanging, gray, bulk.

$0.6800Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

12KR-6H-P Technical Specifications
ParameterValue
SeriesKR
Wire typeDiscrete
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeSocket
Wire gauge26 AWG
Cable terminationIDC
ColorGray
Pitch0.079\" (2.00mm)
PackageBulk
Contact finishTin
Rows1
Positions12

Product details

The 2.00 mm pitch gives a compact wire-to-board interconnect for signal-level circuits — think control harnesses, sensor leads, and internal appliance wiring where the board footprint needs to stay tight. Tin-plated contacts keep the per-unit cost down for assemblies that mate once and stay mated; the gray housing is the standard KR series colour.

IDC termination means the wire insulation is punched through by the contact tines during assembly; no crimp tool, no separate terminal, just the wire and the connector body. That saves a step in harness production, but it also means the wire gauge is non-negotiable: the IDC slot is sized for 26 AWG discrete wire, and only 26 AWG.

Frequently asked questions

Where can I buy the JST 12KR-6H-P and how do I get a price?

Submit a request for quote (RFQ) for current pricing and availability — both are confirmed at quote time.

What wire gauge works with the 12KR-6H-P?

The 12KR-6H-P is designed for 26 AWG discrete wire only — the IDC slot geometry is fixed for that gauge.

What is the pitch of the JST 12KR-6H-P?

The pitch is 0.079" (2.00 mm), which sets the footprint for the mating header on the PCB.
